Detec4 safety light curtain set from SICK

August 10, 2021
Products Images Contacts
Detec4 safety light curtain set from SICK-0

A safe work environment is the cornerstone of every plant's success. Safety light curtains are a handy tool for isolating hazardous areas from workers without installing physical barriers.

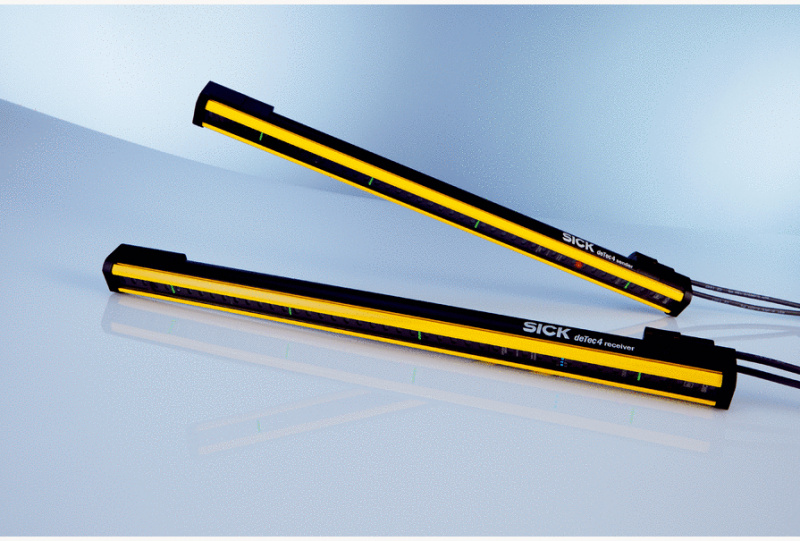

To make it easier and more convenient to order a light curtain system, SICK offers a  ready to install  Detec core 4 curtain safety light curtain set.

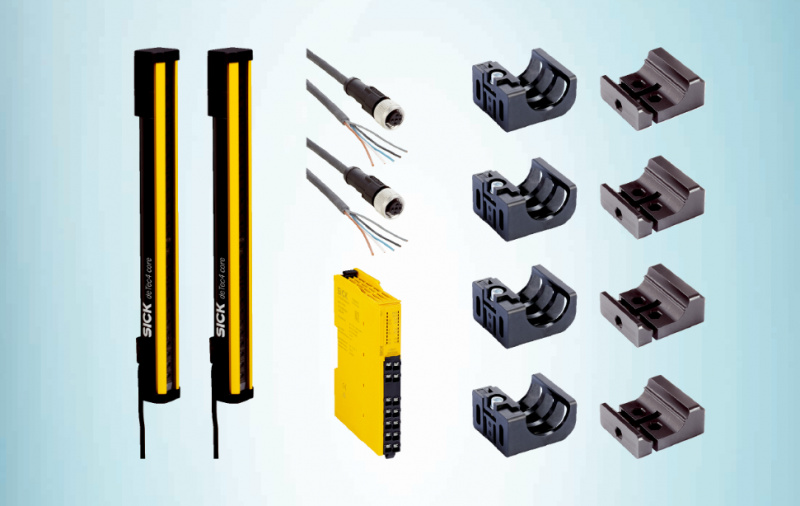

The CORE4 set of safety curtains  include:  transmitter, receiver, safety relay, mounting accessories and cables.

All you have to do is choose the height and resolution of light curtains.

With the Detec Core 4 kit you get:

  • Type 4 protection level (SIL3)
  • Light curtains with scanning distance of 0..15 m and a resolution of 30 mm
  • Light curtains with scanning distance of 0..10 m and a resolution of 14 mm
  • Protective field heights from 350 to 2100 mm

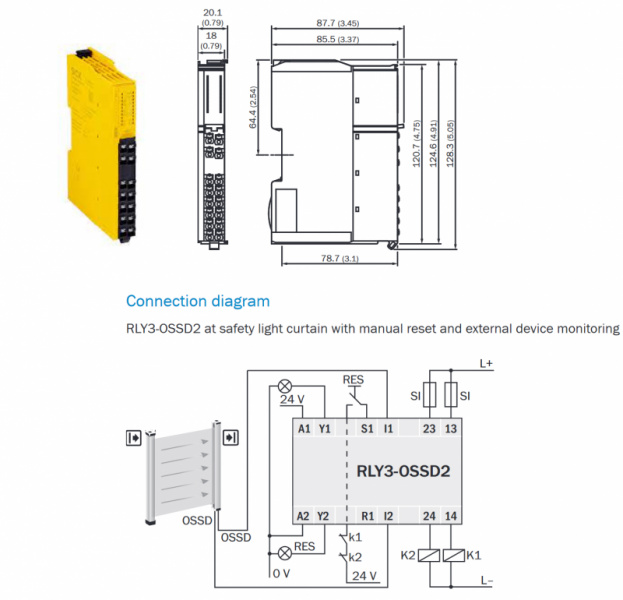

  • Safety relay with 2 safety inputs and 2 enabling current paths in output
  • Necessary accessories for installing curtains in your construction
  • Simple ordering and time saving

Going a step further, if you need a construction where you can strengthen the curtains of security lights and also protect them, then we have a solution for that as well.

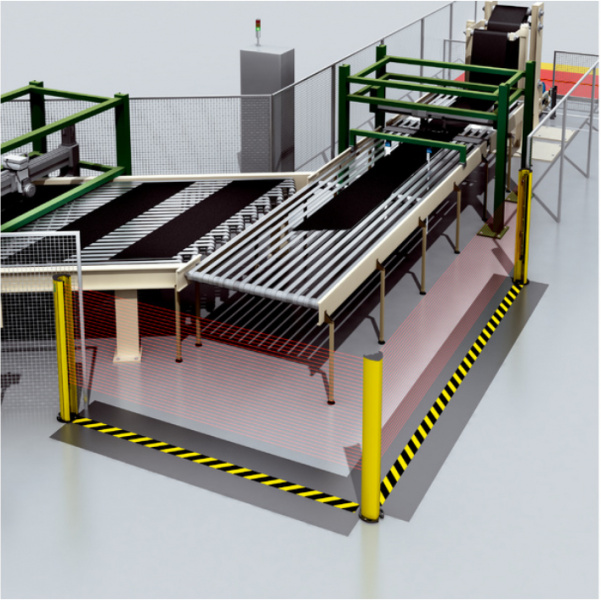

Mounting columns PU3H - a convenient solution for placing light curtains in your factory and protecting them from mechanical damage.

For safe workinf environment.



Products
2045642
Code: 2045642
SOLD OUT. Ask for availability
2045490
Code: 2045490
SOLD OUT. Ask for availability
2068813
Code: 2068813
SOLD OUT. Ask for availability
1062911
Code: 1062911
SOLD OUT. Ask for availability
1062912
Code: 1062912
SOLD OUT. Ask for availability
1062913
Code: 1062913
SOLD OUT. Ask for availability
2045645
Code: 2045645
SOLD OUT. Ask for availability
2045646
Code: 2045646
SOLD OUT. Ask for availability
