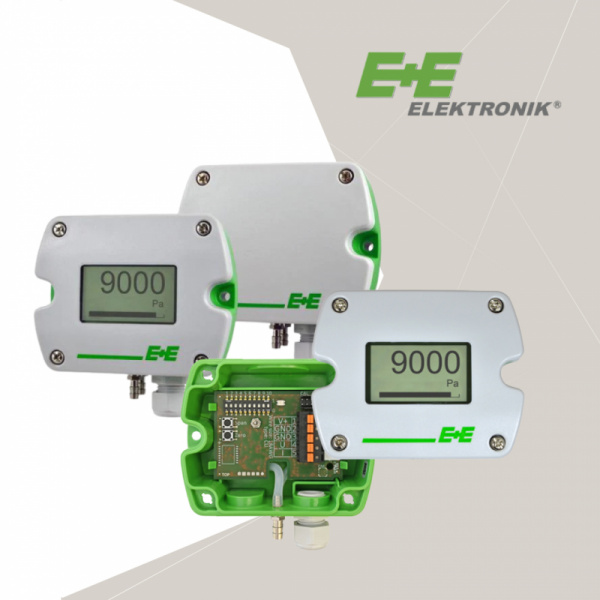

Energy efficiency lies in the small things. Inadequate or insufficient air supply requires a significant amount of energy resources. At the same time, by using suitable equipment, it is possible to prevent unnecessary energy consumption. In this article, we offer you an energy-efficient solution that can prevent filter clogging in ventilation systems, wood material dryers, and many other applications. The differential pressure sensor from E+E is the right key to energy savings.

E+E Electronics sensors are characterized by high quality, long-term stability, and mechanical durability. Professionals who value sensor reliability, measurement accuracy, and longevity in the most challenging working conditions choose sensors of this class.

Application of differential pressure sensors:

  • Wood material dryers,
  • Heating, ventilation, and air conditioning systems (HVAC),
  • Building automation,
  • Cleanrooms,
  • Hospitals,
  • Laboratories,
  • Insulation chambers,
  • Pharmaceutical industry, and more.

Differential pressure sensors can be used for all non-combustible and non-aggressive gases. They utilize a Piezoresistive pressure sensor element, which ensures excellent long-term stability. The sensor measures even minimal pressure differences, completely isolating the pressure environments from each other, eliminating the risk of cross-contamination.

Possibilities of using differential pressure sensors:

  • Ventilation filter monitoring,
  • Volume flow rate measurement (with coefficient input),
  • Air velocity measurement (with coefficient input),
  • Level measurement in liquids.

Key advantages of E+E pressure sensors:

  • ± 0.5% FS accuracy,
  • Multiple measurement ranges,
  • Digital and analog outputs,
  • Fully configurable,
  • Models with large graphic displays available,
  • Installation-friendly housing,
  • Customizable Modbus card (EE600, EE610).

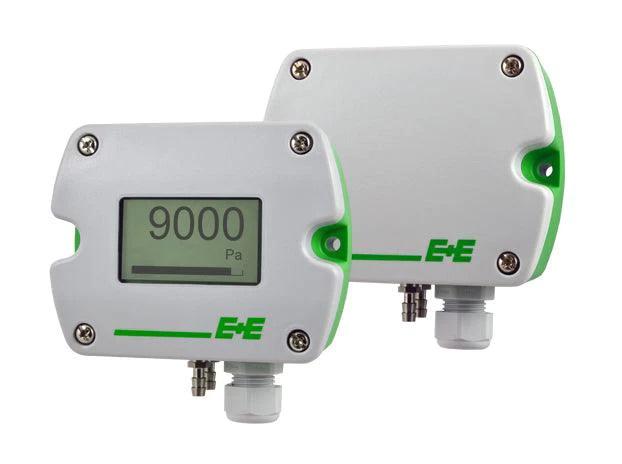

What distinguishes EE600 from EE610?

  • EE600 is a standard differential pressure sensor designed for highly precise differential pressure measurement in ventilation and air conditioning systems or filter monitoring. It can also be used for all non-combustible and non-aggressive gases.
  • EE610 is a low differential pressure sensor intended for highly accurate low differential pressure measurement in medical, pharmaceutical, and high-cleanliness environments. The sensor can be used with non-combustible and non-aggressive gases.

What is the performance of pressure sensor measurements?

EE600 is available with a full scale (FS) of 1000 Pa (4 inches of water column) and 10,000 Pa (40 inches WC). It offers excellent ± 0.5% FS accuracy. Versions with analog outputs and DIP switches allow for selecting multiple measurement ranges. The Piezoresistive pressure sensor element ensures highly precise and stable long-term measurements.

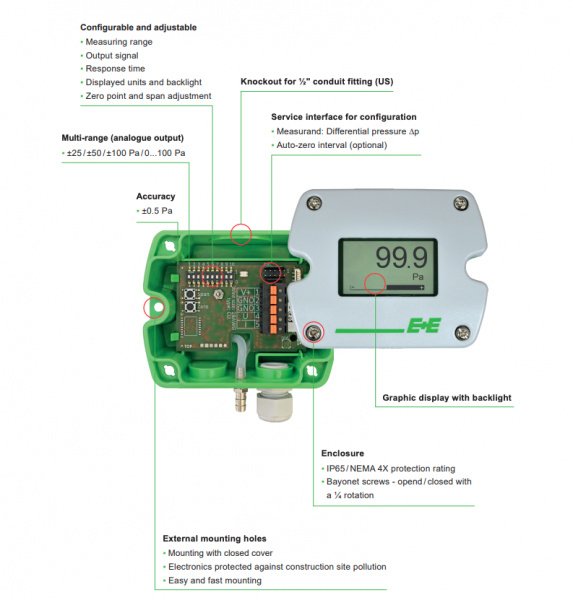

EE610 offers ± 0.5 Pa accuracy across the measurement range. Versions with analog outputs allow for configuring measurement ranges of ± 25 / ± 50 / ± 100 Pa and 0...100 Pa. The piezoresistive, flow-independent pressure sensor element provides a separated environment.

Analog and digital outputs:

Sensors are available with analog voltage and current outputs. These sensors are also available with an RS485 interface using Modbus RTU or BACnet MS/TP protocol.

Functional and durable:

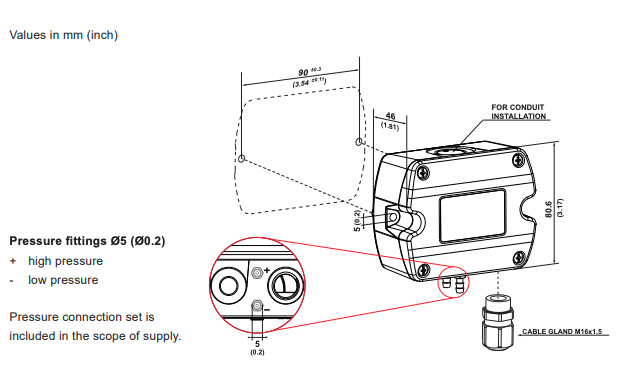

The IP65/NEMA 4 housing reduces installation costs. External mounting holes allow for installation with a closed lid, protecting the electrical components from construction site pollution.

Configurable and adjustable:

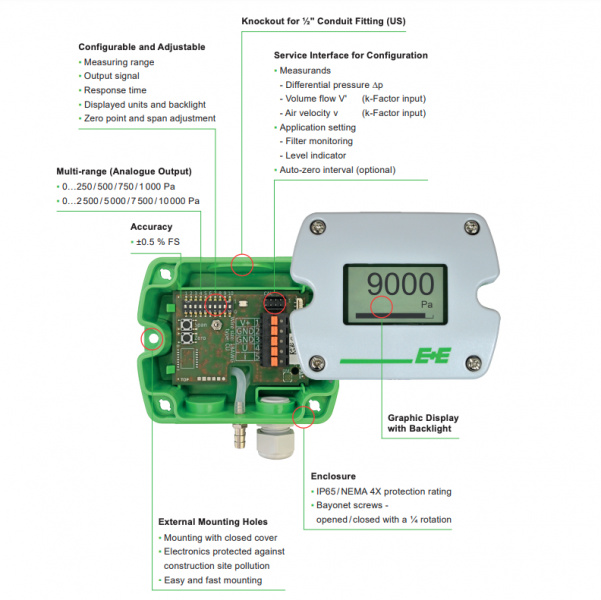

Setting and adjustment can be easily done using DIP switches and buttons on the electronics panel (EE600 with analog outputs). The sensor configuration can also be conveniently performed using an additional adapter and the free EE-PCS configuration software (EE600 with RS485 interface). Configuration includes pressure range, output signal, response time, display units, and backlight. In addition to differential pressure measurement, EE600 can be set for volume flow or air velocity measurement, as well as filter monitoring or level indication.

Technical data of E+E differential pressure sensors:

Measurement range:

  • EE600 I: 0...250 / 500 / 750 / 1000 Pa   II: 0...2500/5000/7500/10000 Pa
  • EE610 ± 25 / ± 50 / ± 100 Pa
  • 0...100 Pa

Accuracy - *Full Scale:

  • ±0,5 % FS*

Overload limits:

  • EE600 0...1000 Pa ± 10000 Pa
  • 0...10000 Pa ± 80000 Pa
  • EE610 ± 7000 Pa

Analog outputs - selectable with DIP switches:

  • 0-5 V or 0-10 V un
  • 0-20 mA or 4-20 mA

Digital output:

  • Modbus RTU or BACnet MS/TP

To learn more about differential pressure sensors from E+E Elektronik, read the attached information or contact the ZTF Lāsma team.
