NEW - multifunctional Z-LTE 4G / LTE is here!

2021-07-05 08:40:54

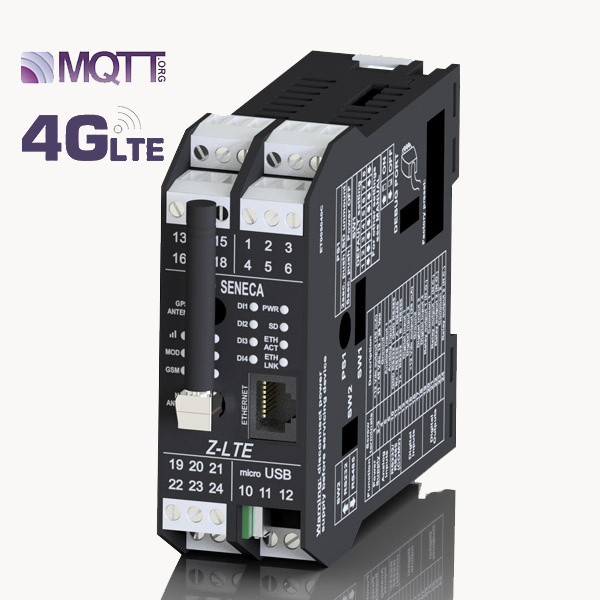

The SENECA series of industrial multifunction controllers, which will also include the well-known Z-GPRS3, is complemented by the Z-LTE model, which supports a 4G / LTE mobile network, providing unprecedented data transfer speeds and connectivity.

Key benefits:

  • 4G LTE World-Wide * modem
  • 4 communication ports, 8 I / O channels
  • built-in GPS receiver
  • built-in UPS battery
  • voice alarms
  • audio commands with DTMF tones
    The device includes logic, remote control and remote alarm functions:
  • power supply range (11..40 Vdc or 19..28 Vac),
  • operating temperature -25..50 ° C (-10..40 ° C using built-in UPS)

* Supported bands:

  • LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28
  • LTE-TDD: B38 / B39 / B40 / B41
  • WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19
  • GSM: B2 / B3 / B5 / B

Extended connectivity and a new power supply!

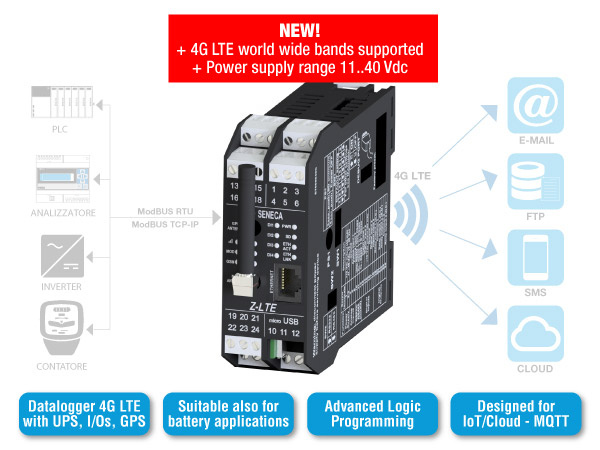

The new multi-band modem will be ideal for various types of IoT // M2M applications where local process control and information exchange with a data server or a centralized visualization control system SCADA is required.

In addition to the new built-in GSM modem, it is also equipped with a GPS module that provides positioning and localization capability, perfect for monitoring and locating mobile devices.

The new power range (from 12 VDC) allows you to expand the controller's range of applications in battery-powered applications, such as vehicles, remote or hard-to-reach objects, and the like.

The built-in UPS power supply allows the Z-LTE to operate during the loss of the primary power supply, and it will continue to inform users about its condition for another 24 hours.

Communication protocols:

  • FTP client
  • SMTP
  • HTTP rest (TLS)
  • MQTT (TLS)
  • ModBUS TCP Client / Server
  • ModBUS RTU Master / Slave
  • HTTPS
  • SMTP with SSL / TLS
  • IIOT / CLOUD SUPPORT HTTP postIIOT / CLOUD SUPPORT HTTP postMQTTSENECA Cloud BOX

Offering extensive scalability with third-party PLC / HMI / SCADA, Z-LTE is ideal for systems and telemetry data acquisition, analysis and monitoring in a variety of industries.

Feel free to contact the ZTF Lāsma team - we are here to support!
