Optidrive ECO AC Variable Frequency Drives dedicated energy saving to pumping and HVAC systems-0

Optidrive ECO AC Variable Frequency Drives dedicated energy saving to pumping and HVAC systems

2022-04-26 09:00:41

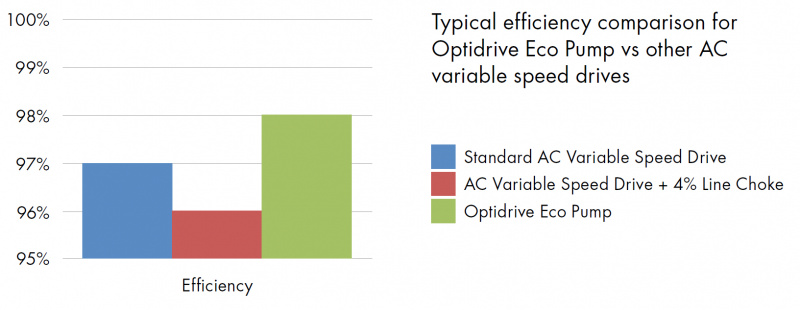

A range of compact AC Variable Frequency Drives dedicated to pumping and HVAC systems. Creating comfortable building environments without high energy costs. Eco Vector continuously adjusts in real time to provide the most efficient operating conditions for the load, typically reducing energy consumption by 2 – 3% compared to standard AC drives – providing similar long term costs savings to selecting a higher efficiency motor.

Optidrive Eco HVAC delivers: Improved Efficiency, Reduced Lifetime Costs: e.g. for a 37kW load, operating 10 hours per day, 5 days per week, 50 weeks per year, improving the efficiency by just 1% will provide an energy saving > 900kWh per year.

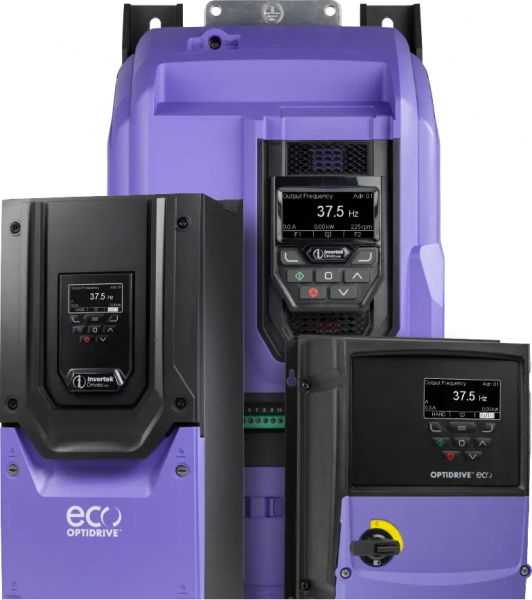

Optidrive ECO is available: 0,75 – 250kW, 200V – 600V IP20 with IP55 & IP66/NEMA 4X enclosures.

  • IP20, IP55
    • Compact, robust enclosures for panel/cabinet mounting
    • Wide range of sizes cover power ranges up to 250 kW/400 HP
    • Operates up to 50°C
    • Keyhole mounts for fast installation
    • Maintenance Interval Timer and Service Indication
  • IP66/NEMA 4X Outdoor
    • Outdoor rated enclosed drives also suitable for direct machine mounting, dust tight and ready for washdown duty
    • Outdoor rated tough polycarbonate enclosure
    • Wide range of sizes cover power ranges up to 11 kW/15 HP
    • Dust tight and washdown ready
    • Conformally coated PCBAs as standard

Sensorless Vector Control for all Motor Types

  • Induction Motors (IM)
  • Permanent Magnet Motors (PM)
  • Brushless DC Motors (BLDC)
  • Synchronous Reluctance Motors (SynRM)
  • Line Start PM Motor (LSPM)

HVAC Building Servies

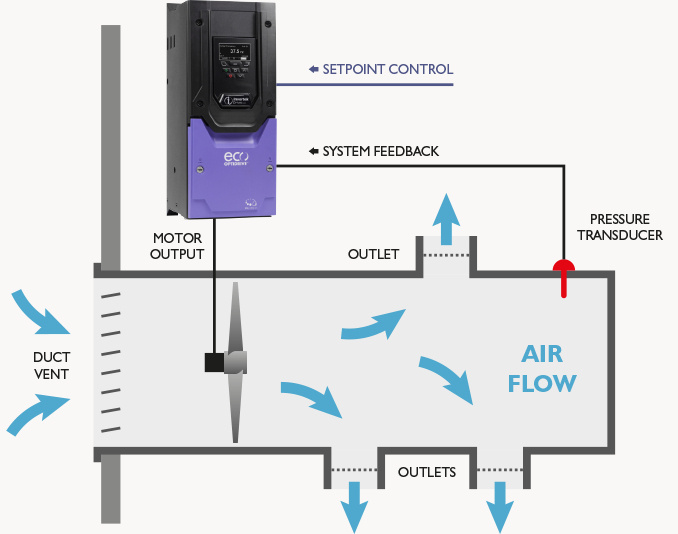

  • Controlling Your HVAC System
  • Multiple Fan Operation
  • Building Automation

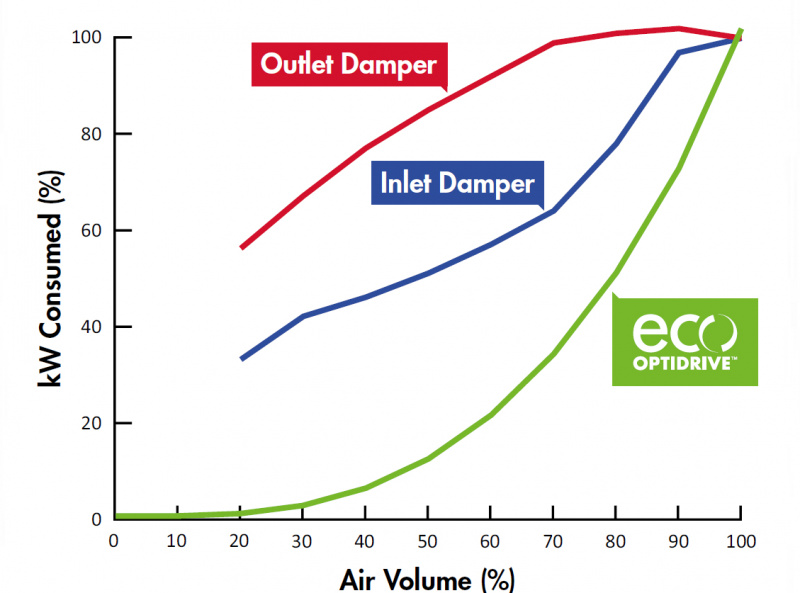

  • Optimising Efficiency
  • Hand / Auto
  • Belt Break Detection
  • Noise Reduction
  • Resonance Avoidance
  • Drive Controlled Bypass

Pump Control

  • Controlling Your Pump System

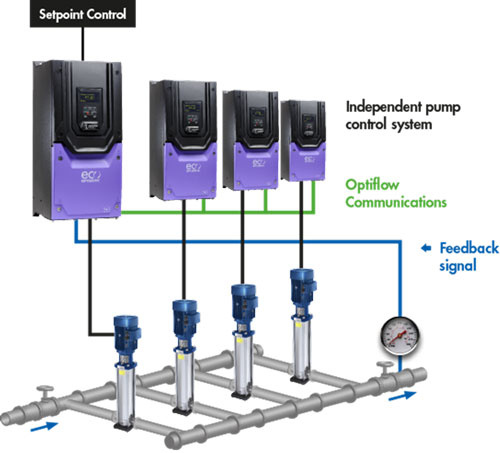

  • Optiflow Multi-pump Control
  • Pump Staging Cascade Control
  • Optimising Efficiency
  • Hand / Auto
  • Avoid Pump Downtime
  • Blockage detect/clear
  • Dry Run Protection
  • Motor Preheat Function
  • Pump Stir Cycle
  • Pump Prime with Burst Pipe Detection
  • Drive Controlled Bypass

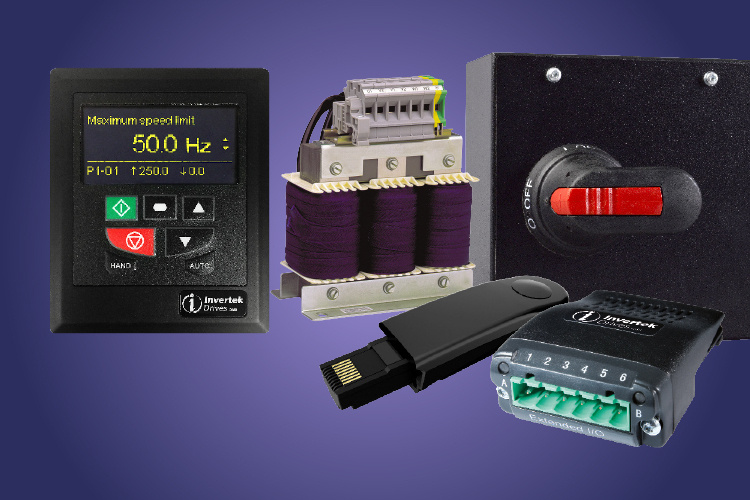

Options for Flexibility

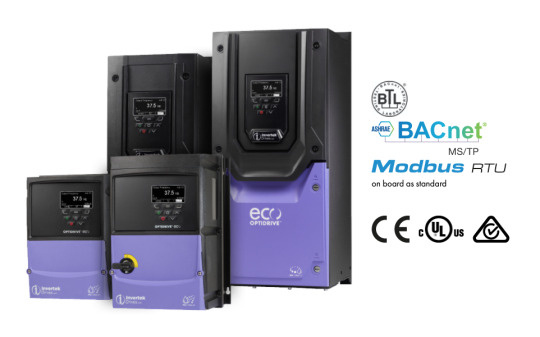

Optidrive Eco HVAC combines both peripheral and factory built options to ensure you get the right drive, scaled to suit your application. With inbuilt BACnet and Modbus, and a host of communication options the Optidrive can integrate easily into your industrial network of choice.

Easy Installation

Compact and modern design utilising the latest available technology has accumulated in a robust HVAC drive with small dimensions and innovative mounting and cabling features.

In-built Sleep Mode with Auto-boost

Sleep mode saves energy by detecting when the system is running inefficiently and producing little useful work. Optidrive Eco can be programmed to enter into a sleep/disabled mode until the demand increases. To help prevent sleep mode oscillation, Optidrive Eco can automatically initiate a boost cycle to increase pressure on starting or stopping.

Resonance Avoidance

Optidrive Eco can be easily configured to avoid frequencies that cause resonance in air handling and pumping systems, preventing unnecessary noise and mechanical damage to motors, ductwork, pipework etc.

Energy Monitoring

The inbuilt energy consumption meters allow energy consumption to be clearly displayed and savings to be calculated.

Energy Savings Calculator

Estimate your potential energy savings, CO2 emissions and financial savings. Are avaliable at AppStore & PlayStore.



If you need a Invertek Drives or accessories, contact ZTF Lāsma specialists who will help you find the most suitable and cost-effective solution. We are here to support!



The article was prepared by:
Aleksandrs Čuslins
