Optidrive Elevator from Invertek Drives

      Optidrive Elevator is the 2nd generation dedicated elevator drive from Invertek Drives, designed to provide smooth, reliable carriage control in all elevator applications.

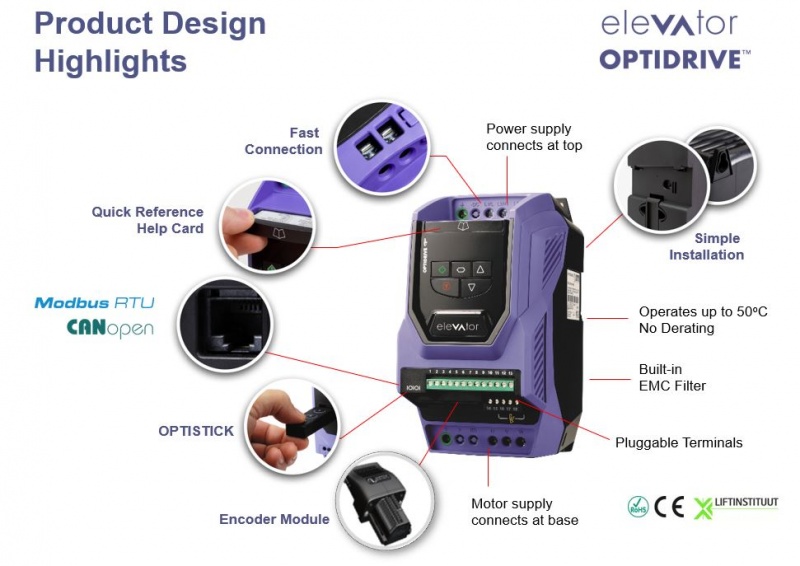

 Why Choose the Optidrive Elevator?

• No specific Motor Allegiance
• Compact modern Enclosure
• Zero space Encoder option card
• Fewer parameters to change
• Easy-Learn parameter structure
• Local technical support

The compact external dimensions simplify installation, whilst optional incremental, EnDat & SinCos encoder feedback interfaces allow compatibility with a wide range of motors. Invertek’s renowned motor control capability ensures maximum ride comfort under all conditions, with five independent S-Ramps and dedicated motor holding brake control algorithm allowing fine tuning of the system.

  Special futures:

• Compact plug-in encoder option
  module for incremental and
  absolute encoder support
• Rescue mode with UPS energy
  conservation mode
• Short floor operation
• Anti-rollback function
• Safe Torque off
• Short floor operation
• Operates up to 50°C
• Brake release monitoring according to EN81-20
