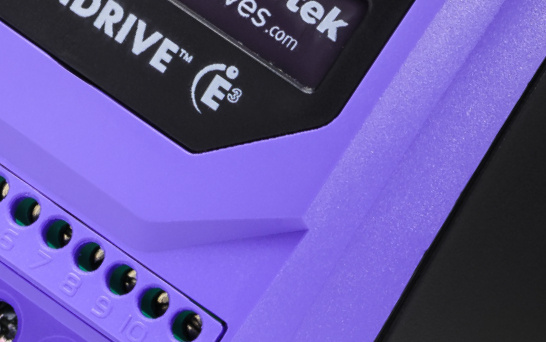

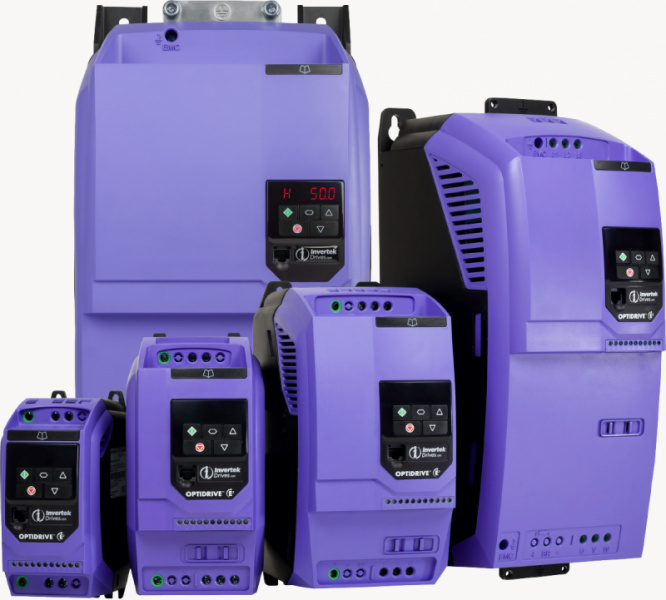

VIDEO: Energy-saving frequency converter Optidrive E3

2022-10-18
Products Images Contacts

Frequency converters from Invertek Drives are designed to control, regulate and protect electric motors. There are quite a few options for how to regulate the engine speed with a frequency converter, this time we will look at one of the existing video examples – “How to connect a potentiometer to Optidrive E3 in 1 minute?” & we will delve into these settings in this article.

We will use a single-phase frequency converter Optidrive E3, a potentiometer and a single-phase motor. The video shows how to set the parameters and adjust the motor speed with the potentiometer. We perform the configuration using the main panel of the frequency converter.

We will use a single-phase frequency converter Optidrive E3, a potentiometer and a single-phase motor. The video shows how to set additional parameters according to P-14, so that you can adjust not only the motor speed with the potentiometer, but also ensure the automatic restart of the equipment at a pre-set speed if there has been a power failure.

We perform the configuration using the main panel of the frequency converter.

Application of frequency converters Optidrive E3:

  • conveyors, mixers, treadmills;
  • metering, bore and portable pumps;
  • swimming pools, SPAs and fountains;
  • air handling equipment, fans, air curtains and hoods.

Technical parameters:

  • sensorless vector control for all motor types,
  • integrated PI controller,
  • IP20 and IP66 protection,
  • power range from 0.37 – 37kW, 110V – 480V

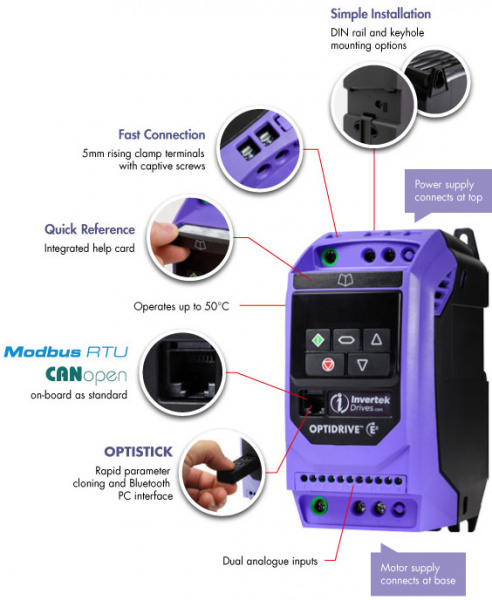

The main advantages of Optidrive E3:

  • additional motor protection and energy saving;
  • speed regulation in a selected range;
  • convenient mounting both on a flat surface and on a DIN rail;
  • fast and understandable setting of parameters;

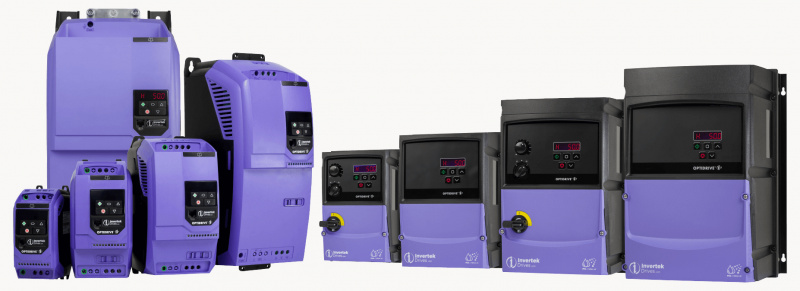

  • available models with IP20 and IP66;
  • it is possible to connect a Bluetooth adapter to perform overclocking with the phone.

Energy-saving frequency converter Optidrive E3 is already available in our warehouse.

If you need other energy-efficient Invertek Drives frequency converters or accessories, contact the specialists of ZTF Lāsma, who will help you find the most suitable and economically advantageous solution. We are here to support!



Other articles and videos about Optidrive E3:

  1. Simple control for all motor types
  2. Invertek Drives frequency converter at Riga Technical University
  3. How to connect a potentiometer to Optidrive E3 in 1 minute?
