Pre-Wired Connectors | M8, M12 & Fieldbus Cordsets

Patch cord; F/UTP; 5e; stranded; CCA; PVC; Orange; 1m; 26AWG

Code: F/UTP5-CCA-010OR

On site: 5+ pcs

Supplier:

1.97 EUR (w/o VAT)

Patch kabelis; S/FTP; cat6; stranded; Cu; LSZH; blue; 3m; halogen free; 68269; 617-1152 S/FTP6-CU-030BL Goobay

Code: S/FTP6-CU-030BL

On site: 5+ pcs

Supplier: 5+ pcs

6.84 EUR (w/o VAT)

Patch cord; F/UTP; Cat: 5e; RJ45 plug,both sides; stranded; CCA

Code: F/UTP5-CCA-002BK

On site: 5+ pcs

Supplier:

1.45 EUR (w/o VAT)

F/UTP cat5E 2,00m GREEN

Code: F/UTP5-CCA-020GR

On site: 5+ pcs

Supplier:

2.00 EUR (w/o VAT)

S/FTP cat5E 1,50m YELLOW

Code: F/UTP5-CCA-015YL

On site: 5+ pcs

Supplier:

2.00 EUR (w/o VAT)

F/UTP cat5E 0,50m RED

Code: F/UTP5-CCA-005RD

On site: 4 pcs

Supplier: 5+ pcs

2.00 EUR (w/o VAT)

NBC-R4AC/0,5-94Z/R4AC ,MOQ: 1, 1403926 Phoenix Contact

Code: PC1403926

On site: 3 gab

Supplier:

14.62 EUR (w/o VAT)

Patch kabelis; S/FTP; cat6; stranded; Cu; LSZH; yellow; 1.5m; halogen free; 95578; 617-1174 S/FTP6-CU-015YL Goobay

Code: S/FTP6-CU-015YL

On site: 3 pcs

Supplier: 5+ pcs

3.54 EUR (w/o VAT)

Cable; 50Ω; 2m; SMA socket,SMA plug,reverse; Black

Code: SMA-M/F-002

On site: 2 pcs

Supplier:

11.85 EUR (w/o VAT)

Yfhrsa-050Xxxmhrsa Pvc/70,1/Bk/Us, 6028944 Sick

Code: 6028944

On site: 1 pcs

Supplier:

220.00 EUR

154.00 EUR (w/o VAT)

Yf2A14-020Vb3M2A14 Pvc/40,34/Gr/Us, 2096599 Sick

Code: 2096599

On site: 1 pcs

Supplier:

17.16 EUR (w/o VAT)

Cable; D-Sub 9pin socket,both sides; Len: 3m; Connection 1: 1

Code: CAB-09GG/3

On site: 1 pcs

Supplier:

7.20 EUR (w/o VAT)

YF2A15-010UB5M2A15 PUR/5*0,34/BK/US

Code: 2096007

On site: 1 pcs

Supplier:

16.39 EUR (w/o VAT)

VS-PNRJ45-PNRJ45-93B-0,5 ,MOQ: 1, 1406398 Phoenix Contact

Code: PC1406398

On site: 1 pcs

Supplier:

39.74 EUR (w/o VAT)

YF2A14-030UB3N2A14 PUR/4*0.34/BK/US,2139066, SICK

Code: 2139066

On site: 0 pcs

Supplier:

18.15 EUR (w/o VAT)

Yf2A14-030Vb3M2A14 Pvc/40,34/Gr/Us, 2114730 Sick

Code: 2114730

On site: 0 pcs

Supplier:

17.93 EUR (w/o VAT)

Sensopart K4-2m-G PUR M8 4-pin

Code: 90250801

On site: 0 pcs

Supplier:

12.87 EUR (w/o VAT)

HA010818 Probe cables 10m for EE741 / 771 / 772 / 776

Code: HA010818

On site: 0 pcs

Supplier:

application transfer cable between terminal and PC - 2 m

Code: XBTZG935

On site: 0 gab

Supplier:

178.51 EUR (w/o VAT)

YM2D24-050PN1MRJA4 M12, 4-pin, straight, D-coded / RJ45, 4-pin, straight

Code: 2106184

On site: 0 pcs

Supplier:

64.35 EUR (w/o VAT)

Pre-wired connectors are circular connector assemblies with factory-terminated cable attached — available as single-ended cordsets (connector + flying leads for panel termination) or double-ended cordsets (connectors on both ends for device-to-device connection). The most common sizes are M8 (compact sensors, tight spaces) and M12 (general-purpose sensors, actuators, fieldbus, and industrial Ethernet). Larger formats — M16, M23, and 7/8" — cover higher pin counts and power distribution applications.

M12 connectors use mechanical coding to prevent mismating: A-coded for standard sensor/DC power, B-coded for PROFIBUS, D-coded for Fast Ethernet (100BASE-TX), and X-coded for Gigabit and 10GbE Ethernet. Protocol-specific cordsets are available for PROFIBUS, DeviceNet, CANopen, EtherNet/IP, and PROFINET.

Cable jackets are available in PVC (cost-effective, static installations) and PUR (polyurethane — preferred for drag chains, continuous flex, and oil-exposed environments). Shielded versions are available for EMI-sensitive applications such as servo drives and data networks.

Key technical selection criteria

Thread/shell size: M5, M8, M12, M16, M23, or 7/8"
Pin count: 2, 3, 4, 5, 8, 12, or 17 pins depending on series
M12 coding type: A / B / D / X — must match the mating device
IP rating: IP67 for standard washdown; IP69K for high-pressure food and beverage environments
Cable jacket: PUR for flex/drag chain; PVC for fixed routing
Connector orientation: Straight or 90° right-angle for cable routing in confined spaces
Shielding: Required for fieldbus, Ethernet, and EMI-sensitive signal lines
Cable length: Standard 1 m, 2 m, 5 m, 10 m; custom lengths available

Comparison overview

Size	Typical Pin Count	Common Use	Max Current (typical)
M5	2–3	Miniature sensors	1 A
M8	3–5	Compact sensors, actuators	1–2 A
M12	3–12	Sensors, fieldbus, Ethernet	Up to 4 A
M23	6–17	Servo feedback, high pin count	Up to 6 A
7/8"	3–5	DeviceNet power distribution	Up to 16 A

When should I use M8 instead of M12 connectors?

Use M8 where mounting space is tight and current requirements are low (1–2 A). M12 is the better choice for general-purpose wiring, higher current loads, fieldbus, or industrial Ethernet.

What does A-coded, D-coded, or X-coded mean on M12 connectors?

The coding key prevents mismatching between incompatible systems. A-coded is for sensor/DC power, D-coded for Fast Ethernet (100BASE-TX), and X-coded for Gigabit and 10GbE Ethernet.

Can pre-wired connectors be used in drag chain or continuous flex applications?

Yes, but you must select cordsets with PUR-jacketed cable rated for continuous flex and verify the minimum bend radius meets your drag chain geometry.

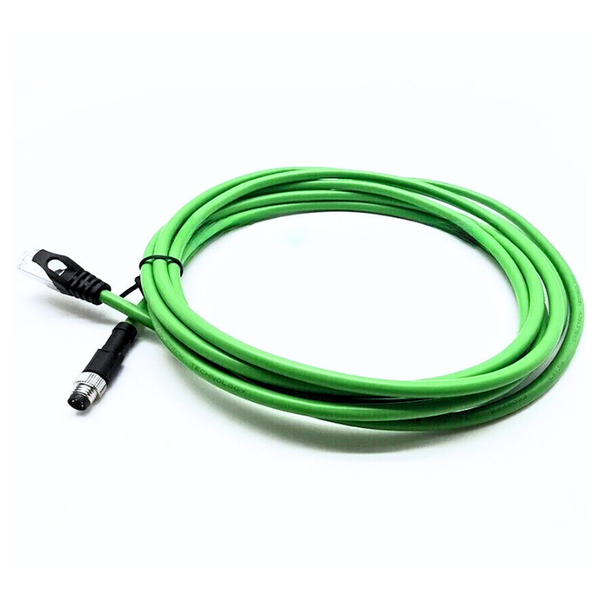

What is the difference between single-ended and double-ended cordsets?

Single-ended cordsets have one connector and flying leads for termination at a terminal block or I/O module. Double-ended cordsets have connectors on both ends for direct device-to-device connection.
