SICK universal encoders - customizable for any of your solutions

August 24, 2017

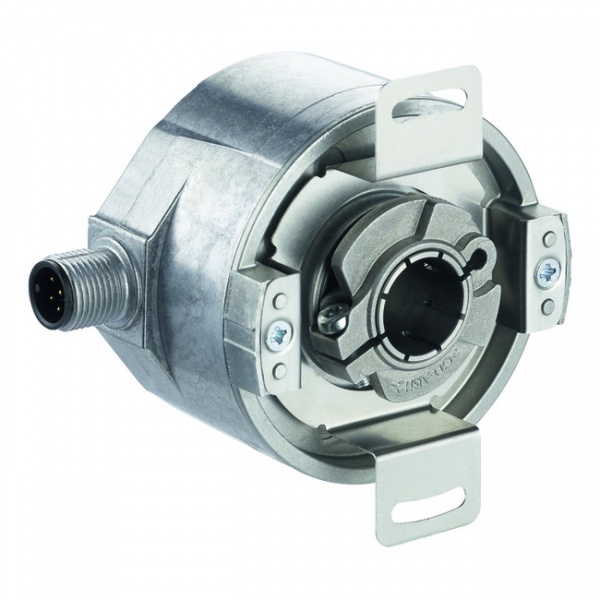

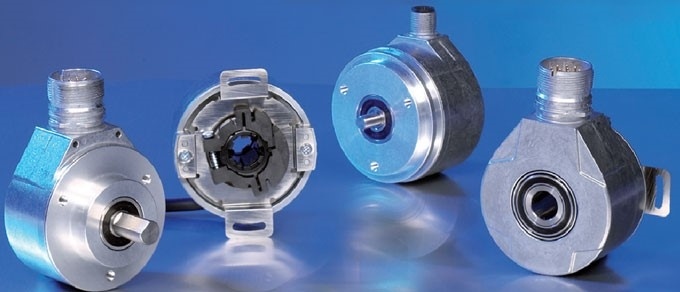

SICK DSF60 series programmable incremental encoders are the perfect solution for any variable and dynamic production environment. In situations where it is urgently needed to replace a damaged encoder or choose a new encoder, the SICK DSF60 series encoders will be able to be adapted to the required technical execution.

A wide range of programmable encoders is available in our warehouse in Riga, therefore we are able to program and provide prompt delivery for any of your requests.

In order to minimize the downtime of production equipment and the provision of various reserve encoders, it is also possible to purchase an SICK encoder programmer, which will help you locate and customize the SICK DSF60 encoder on any other technical parameters of an encoder yourself.
Programmable sizes:
Number of pulses per turn: 1 to 10,000 imp / per kilo;
(special models with 1 to 65536 imp / ac)
Electrical interface: TTL / RS-422; HTL / push pull
Zero impulse state and width

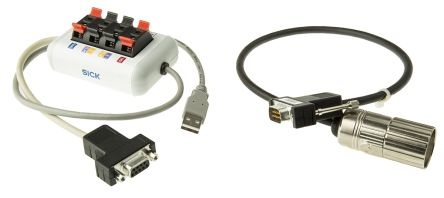

Suitable programmers - PGT-08-S; PGT-10-S

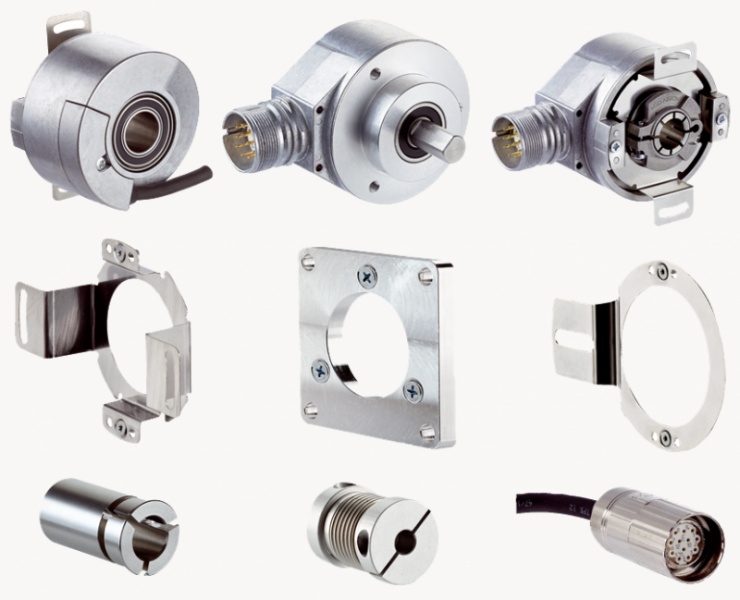

Mechanical coupling and shaft variations:
Servo or connection flange
Shaft diameter 6; 10mm
Dob shaft diameter 6; 8; 10; 12; 15mm
Cable length and connector variations:
Radial or axial M23 or M12 connector
8-pin screen cable cable 1.5; 3; 5; 10 m
Housing diameter 60 mm; IP67 / IP65
