Weintek HMI with Codesys PLC license

January 13, 2022
Products Images Contacts
Weintek HMI with Codesys PLC license-0

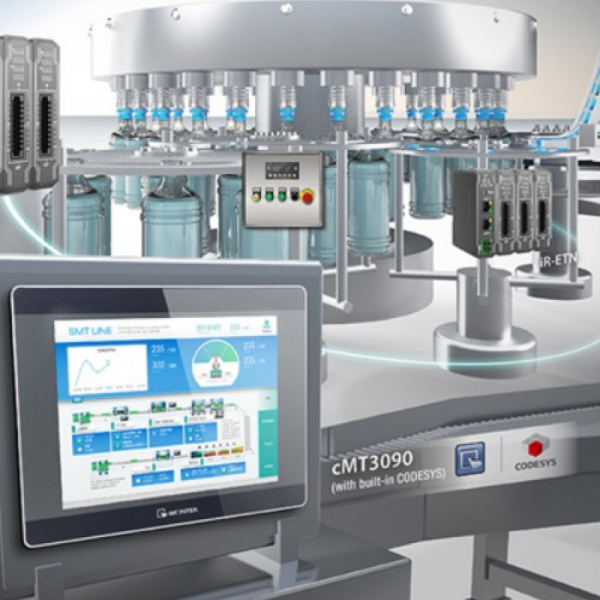

Weintek visualization panel as a Codesys controller. By activating the Codesys Weintek panel, you get both: visualization and a process controller in the Codesys environment. A compact and efficient solution for controlling and visualizing your processes. When combined with Weintek communication and I/O modules, you get a flexible and easily expandable input/output system

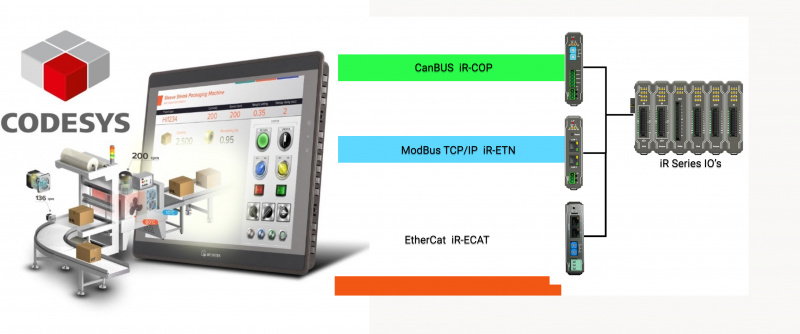

In addition to the PLC section, you can integrate other devices with communication protocols such as:

  • Modbus TCP/IP
  • EtherCat
  • CanBus

With Weintek and Codesys, you get a free software for both visualization development (EasyBuilderPro) and PLC programming (Codesys). Both programs have extensive support with examples and demo projects.

The Codesys programming environment allows you the flexibility to design your projects in languages ​​such as:

  • IL (instruction List)
  • ST (structured text)
  • LD (ladder diagramm)
  • FBD (function block diagramm)
  • SFC (sequential function chart)

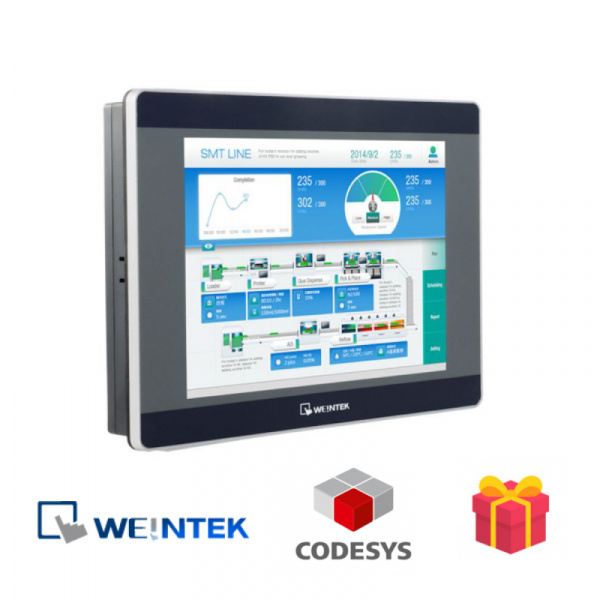

When you purchase any CMT -... X series panel together with the input/output modules, you will receive a Codesy activation card as a GIFT.

If you need a Weintek HMI with Codesys PLC license, contact ZTF Lāsma specialists who will help you find the most suitable and cost-effective solution. We are here to support!



Products
cMT2078X
HMI panelis 7'', 800 x 600px, ARM Cortex A35 1500MHz, Ethernet / USB Host / RS232 / RS485, cMT2078X Weintek
Code: cMT2078X
In stock: 5+ pcs
cMT3162X
HMI panelis 15,6'', 1920 x 1080px, ARM Cortex A17 1600MHz, Ethernet / USB Host / RS232 / RS485 / CanBus, cMT3162X Weintek
Code: cMT3162X
In stock: 5+ pcs
1326.00 EUR (w/o VAT)
cMT3072X
HMI panelis 7'', 800 x 480px, ARM Cortex A35 1500MHz, Ethernet 2x / USB Host / RS232 / RS485 / CanBus, cMT3072X Weintek
Code: cMT3072X
In stock: 5+ pcs
iRDI16K
Weintek iR-DI16-K 16 inputs module (sink / source) 15-28VDC,
Code: iRDI16K
In stock: 5+ pcs
MU210410
I/O Module Modbus TCP/Ethernet, 16 DO: transistors (PWM up to 60 kHz) High-side switch - 0.8A High- or low-side switch - 0.1A
Code: MU210410
In stock: 5 pcs
iRDQ16P
Weintek iR-DQ16-P 16 output module (source) 11-28VDC,
Code: iRDQ16P
In stock: 5 pcs
MV210101
I/O Module Modbus TCP/Ethernet 8AI: RTD, Thermocouples, 0-5 mA, 0(4)-20 mA, 0-1 V, 0...(2)5 kohm
Code: MV210101
In stock: 4 pcs
iRETN
Weintek iR-ETN Adapter Modbus TCP/IP, 2xETH 10/100 Mbps,
Code: iRETN
In stock: 4 pcs
iRAI04VI
Weintek iR-AI04-VI 4 analog input module (current or voltage),
Code: iRAI04VI
In stock: 4 pcs
cMT3102X
HMI panelis 10,1'', 1024 x 600px, ARM Cortex A17 1600MHz, USB Host / Ethernet 2x / RS485 / RS232 / CanBus, cMT3102X Weintek
Code: cMT3102X
In stock: 4 pcs
cMT2158X
HMI panelis 15'', 1024 x 768px, Quad-Core RISC 1600MHz, Ethernet / RS485 / RS232 / USB Host, cMT2158X Weintek
Code: cMT2158X
In stock: 3 pcs
weintekCodesys
Weintek Codesys activation card
Code: weintekCodesys
In stock: 2 pcs
MK210312
MK210-311, I/O Module Modbus TCP/Ethernet, 12DI: switch contacts (24 V DC external power supply), NPN/PNP sensors 4 DO: relays (NO), 5 A at 250 VAC, cos > 0.4 or 3 A at 30 VDC
Code: MK210312
In stock: 2 pcs
iRECAT
Weintek iR-ECAT Adapter EtherCAT Slave, 2xETH 10/100 Mbps,
Code: iRECAT
In stock: 1 pcs
cMT2108X
HMI panelis 10,1'', 1024 x 600px, Quad-Core RISC 1600MHz, RS485 / Ethernet / USB Host / RS232, cMT2108X Weintek
Code: cMT2108X
Ask for availability
MV210202
I/O Module Modbus TCP/Ethernet, 20 DI: switch contacts, NPN/PNP sensors, pulse counters (24 V DC external power supply, measuring frequency up to 100 kHz)
Code: MV210202
Ask for availability
iRDM16P
Weintek iR-DM16-P Module 8 inputs (sink / source) 15-28VDC and 8 outputs (source) 11-28VDC (max 0.5A / 4A per group).,
Code: iRDM16P
Ask for availability
cMT3092X
HMI panelis 9,7'', 1024 x 768px, ARM Cortex A17 1600MHz, Ethernet 2x / USB Host / RS232 / RS485 / CanBus, cMT3092X Weintek
Code: cMT3092X
Ask for availability
iRCOP
Weintek iR-COP Adapter CANopen, 50k~1 Mbps,
Code: iRCOP
Ask for availability
