OPTISTICK - how to read and copy data from one Invertek Drives drive to another

July 31, 2020
Video Products Images Contacts
OPTISTICK - how to read and copy data from one Invertek Drives drive to another-0

Variable frequency drive data copying can be done in 2 big steps. First - data download to phone, second - data upload to Invertek drive.

Data download to mobile phone:

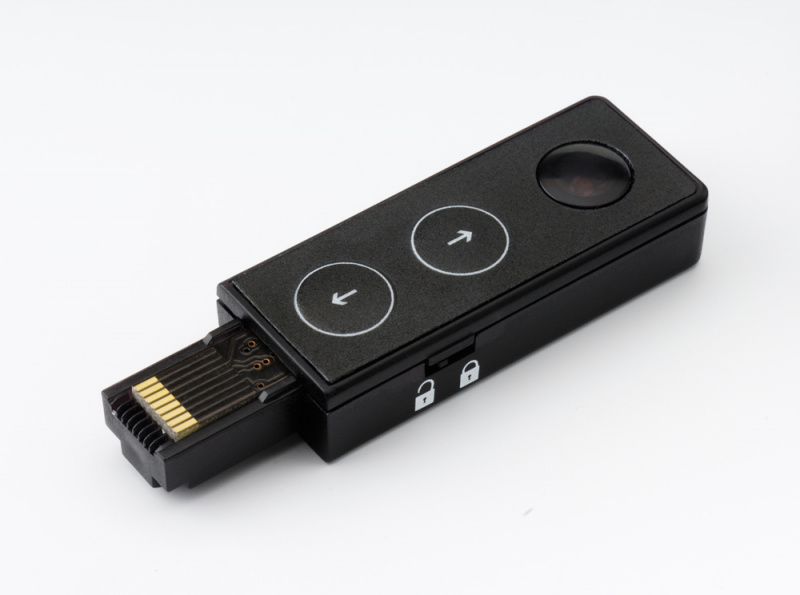

  1. Insert OPTISTICK  Smart into the RJ45 port on the OPTIDRIVE
  2. Initiate process by launching the OPTITOOLS Mobile app
  3. Select - Connect to OPTIDRIVE via Bluetooth
  4. Select the desired OPTISTICK Smart from the list
  5. Confirm the OPTIDRIVE the OPTISTICK Smart is connected to by selecting it
  6. Select function - Transfer data
  7. Select - Transfer data from drive
  8. The data transfer will commence. Depending on the drive mode there may be multiple files
  9. Touch the Save icon to save the data file
  10. Enter the file name
  11. The process is complete

Data upload to drive:

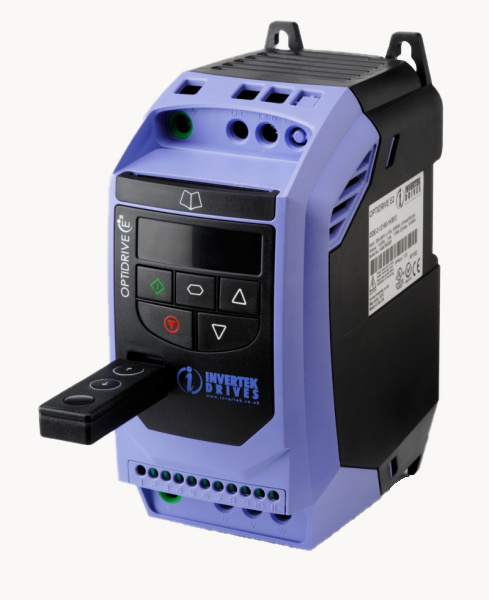

  1. Insert OPTISTICK  Smart into the RJ45 port on the OPTIDRIVE
  2. Initiate process by launching the OPTITOOLS Mobile app
  3. Select - Connect to OPTIDRIVE via Bluetooth
  4. Select the desired OPTISTICK Smart from the list
  5. Confirm the OPTIDRIVE the OPTISTICK Smart is connected to by selecting it
  6. Select function - Transfer data
  7. Before attempting to transfer data, unlock the OPTISTICK Smart by touching the padlock symbol until the LEDs stop flashing
  8. The OPTISTICK Smart is unlocked when two green arrows are displayed
  9. Select - Transfer data to drive
  10. Select the file you want to upload
  11. Data transfer will commence
  12. The info displayed on the OPTIDRIVE will indicate that data transfer is underway
  13. When the progress bar turns green, the process is complete.
