Did you know that precise temperature control can significantly improve manufacturing quality and efficiency? In this article, you will learn how Pixsys PID controllers ATR-264 and ATR-464 help various industries ensure high performance and precision. Discover their capabilities and advantages to make an informed choice for improving your manufacturing process.

Table of Contents:

Pixsys PID controllers are designed to meet the needs of various industrial sectors, providing precise and reliable temperature control.

Wide Range of Applications

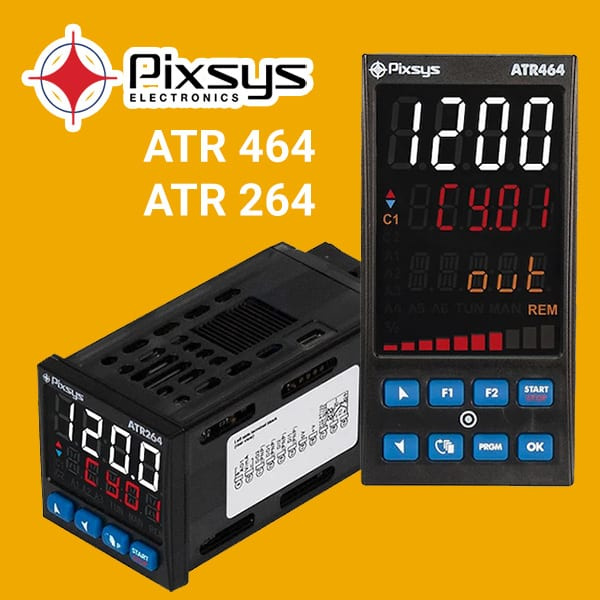

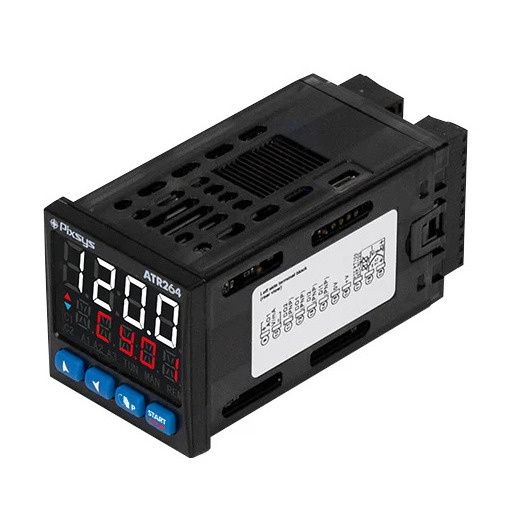

The ATR264 and ATR464 series controllers are intended for the automation and process control of industrial/laboratory furnaces, dryers, and thermal treatment systems, where cycles/profiles that control the process temperature concerning time are defined.

Using Pixsys Controllers in Various Industries:

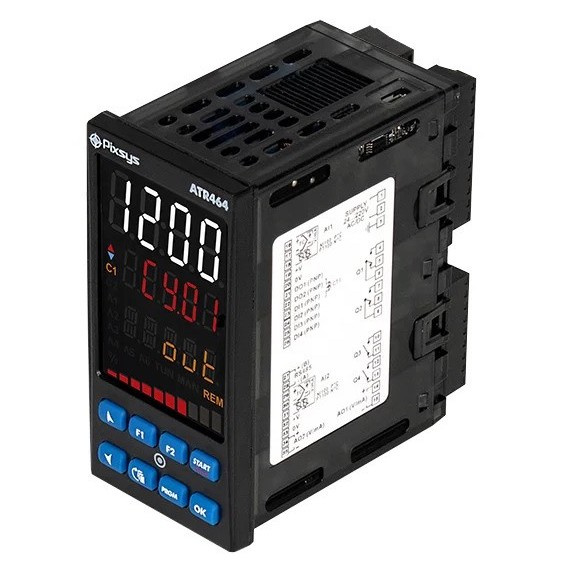

  • PIXSYS ATR 464Glass and ceramics manufacturing
  • Thermal treatment systems
  • Wood drying
  • Metalworking

These controllers are suitable for both simple and complex processes, ensuring precision and reliability.

Features and Capabilities

Programmable Up to 15 Cycles

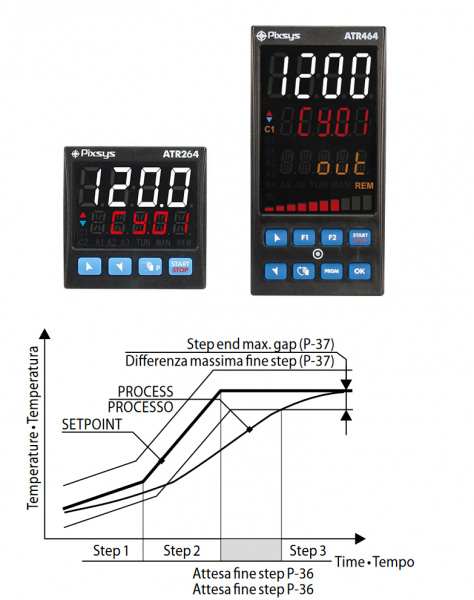

The ATR-264 and ATR-464 controllers allow programming up to 15 cycles, each containing up to 30 steps. Users can configure cycles for heating (Ramp), soaking (Soak), and cooling, providing complete control over the temperature profile.

Integrated Software Features

The device includes integrated software features commonly required in furnace management:

  • Standby mode (if the process is delayed compared to the programmed setpoint)
  • Cycle recovery or continuation mode (after a power interruption)
  • Special function for drying chamber (furnace) control (13ABC / 15ABC).

User-Friendly Interface

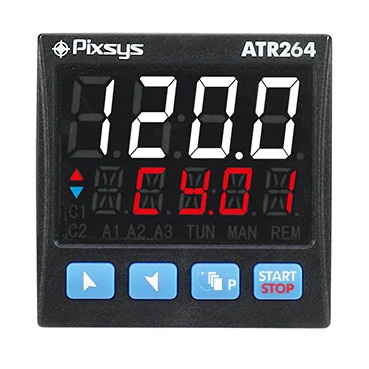

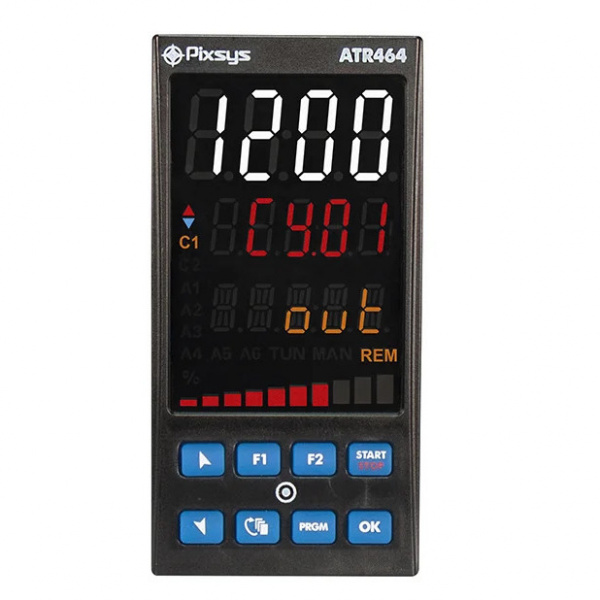

Like other Pixsys controllers, the ATR264 and ATR464 offer an intuitive interface that makes configuration and programming easy even for inexperienced operators. The controllers can be programmed using:

  • MyPixsys App with NFC technology on a smartphone

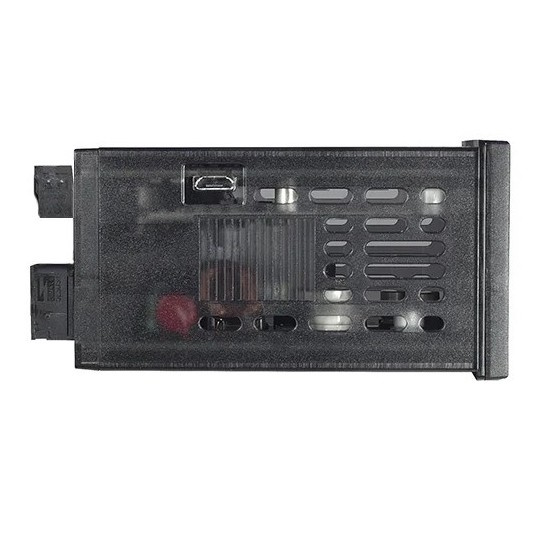

  • MyPixsysLab software on a computer
  • Directly from the controller's control panel

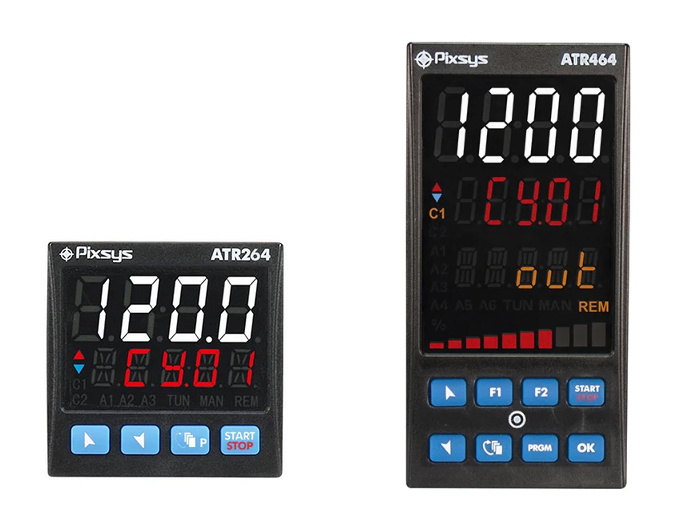

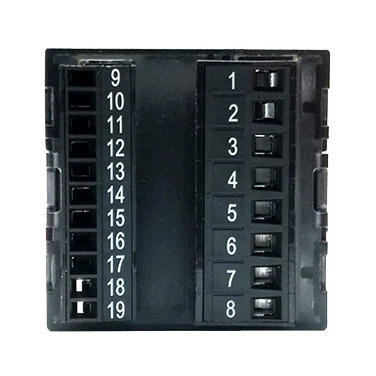

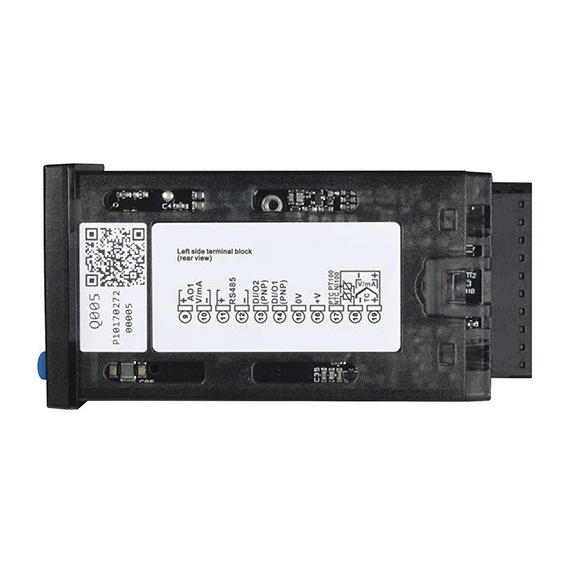

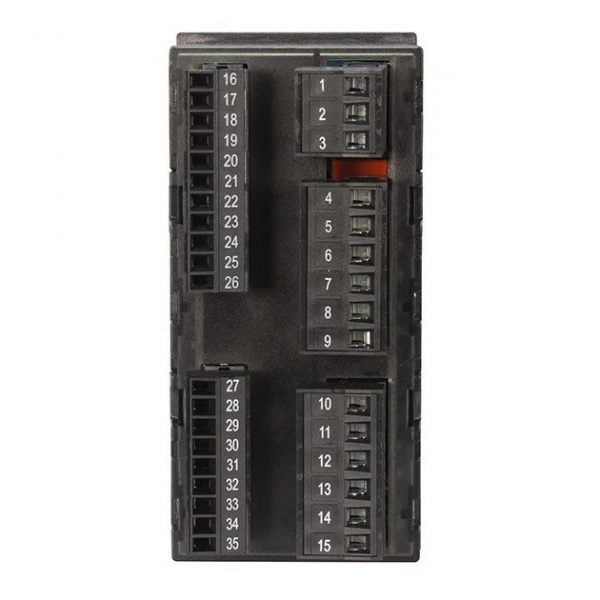

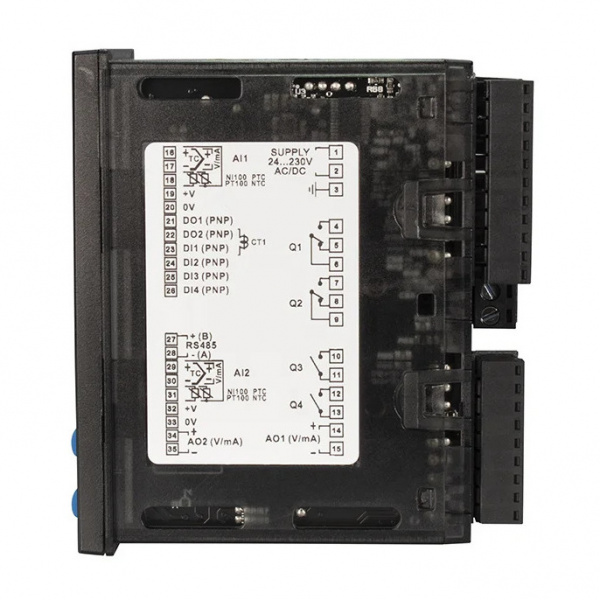

Comparison of Pixsys ATR264 and ATR464

Parameter ATR264-12ABC-T ATR264-13ABC ATR464-15ABC ATR464-24ABC-T
Power Supply 24...230 V AC / DC ±15% 50/60 Hz 24...230 V AC / DC ±15% 50/60 Hz 24..220 V AC / DC ±10% 50/60 Hz – galvanic isolation 2.5KV 24..220 V AC / DC ±10% 50/60 Hz – galvanic isolation 2.5KV
Power Consumption 9 Watt/VA 8 Watt/VA 5.5 Watt/VA 7 Watt/VA
Display 4-digit 0.52" white + 5-digit 0.3" red display 4-digit 0.52" white + 5-digit 0.3" red display 4-digit 0.63" white + 5-digit 0.39" red + 5-digit 0.33" yellow display with bar graph and 12 alarm LEDs 4-digit 0.63" white + 5-digit 0.39" red + 5-digit 0.33" yellow display with bar graph and 12 alarm LEDs
Analog Inputs 1x Ris. 16bit, programmable for thermocouples K, J, S, R, T, E, N, B. Thermistors PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA, 0..1/5/10V, 0..60mV 1x Ris. 16bit, programmable for thermocouples K, J, S, R, T, E, N, B. Thermistors PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA, 0..1/5/10V, 0..60mV, Current transformer 50mA 1x Ris. 16bit, programmable for thermocouples K, S, R, J, T, E, N, B. Thermistors PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA, 0..1/5/10V, 0..60mV 2x Ris. 16bit, programmable for thermocouples K, S, R, J, T, E, N, B. Thermistors PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA, 0..1/5/10V, 0..60mV, Potentiometers F.S. 1/150Kohm
Digital Inputs 2 PNP 2 PNP 4 x PNP 4 x PNP
Digital Outputs 2 x PNP 12VDC – 25mA or 24VDC – 15mA, selected by parameter 2 x PNP 12VDC – 25mA or 24VDC – 15mA, selected by parameter 2 x PNP 12VDC – 30mA max 2 x PNP 12VDC – 30mA max
Relay Outputs 2 x (2 A – 250 V AC resistive load) 3 x (2 A – 250 V AC resistive load) 5 x (5 A – 250 V AC resistive load) 4 x (5 A – 250 V AC resistive load)
Analog Outputs 1 x 4..20 mA (40000 points ± 0.2% F.S) or 0..10 V DC (40000 points ± 0.2% F.S) 1 x 4..20 mA (40000 points ± 0.2% F.S) or 0..10 V DC (40000 points ± 0.2% F.S) - 2 x 4..20 mA (40000 points ± 0.2% F.S) or 0..10 V DC (40000 points ± 0.2% F.S)
Serial Communication RS485 (1200..115200 Baud galvanically isolated) - - RS485 (1200..115200 Baud)

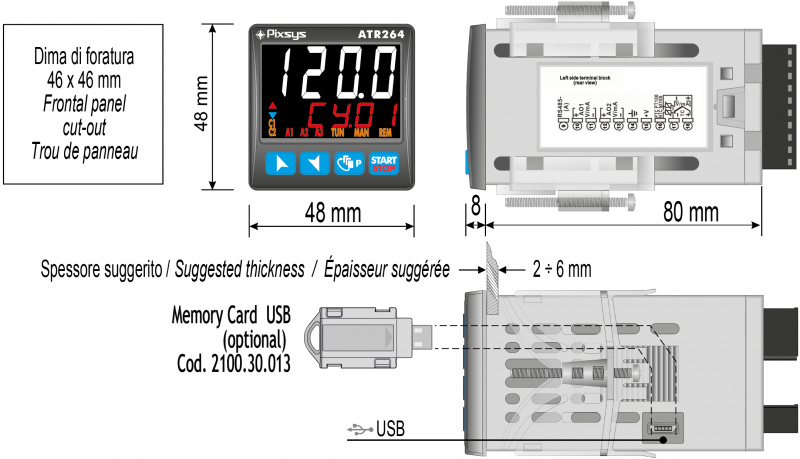

Dimensions 48 x 48 x 80 mm 48 x 48 x 80 mm 48 x 96 x 88 mm 48 x 96 x 88 mm

Summary

Pixsys PID controllers ATR-264 and ATR-464 offer high precision and performance solutions for various industrial needs. With a user-friendly interface and a wide range of programming options, these controllers will help you optimize production processes and improve product quality.



Enhance production efficiency with Pixsys PID controllers. Contact us to learn more about how to optimize your manufacturing processes.
