Seneca Modbus TCP / IP and Profinet configurable 32 DI / DO modules

March 21, 2022
Products Images Contacts
Seneca Modbus TCP / IP and Profinet configurable 32 DI / DO modules-0

The supply of digital input/output modules can lead to headaches, as it is necessary to know clearly how many inputs and how many outputs there will be. As you already know in reality, changes or unplanned additional settings are often introduced during the project implementation, which greatly expand the number of inputs, outputs or both. It is always more convenient to upgrade the system later if there are already free input / output channels in control cabinet.

Save time on design, sourcing and project expansion with the new SENECA R-Series configurable I/O modules.

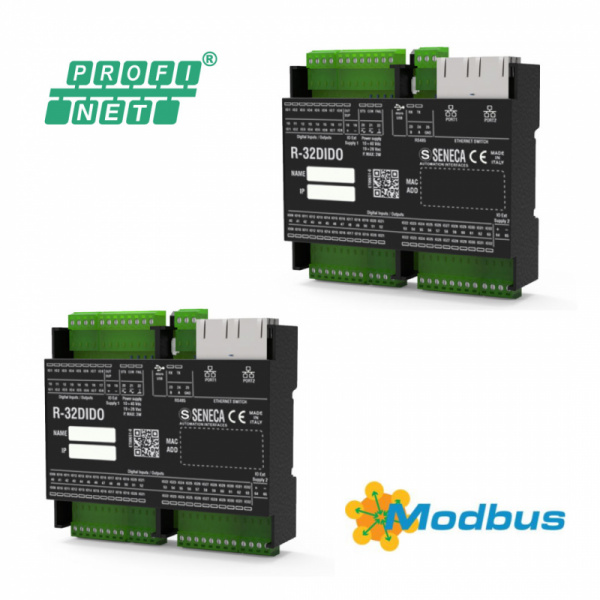

  • R-32DIDO
  • R-32DIDO-P

The R-32DIDO offers a flexible approach to input/output channel planning with 32 freely configurable channels. Any of the 32 channels can be configured as input or output. With this solution, you get the optimal IO ratio for your needs.

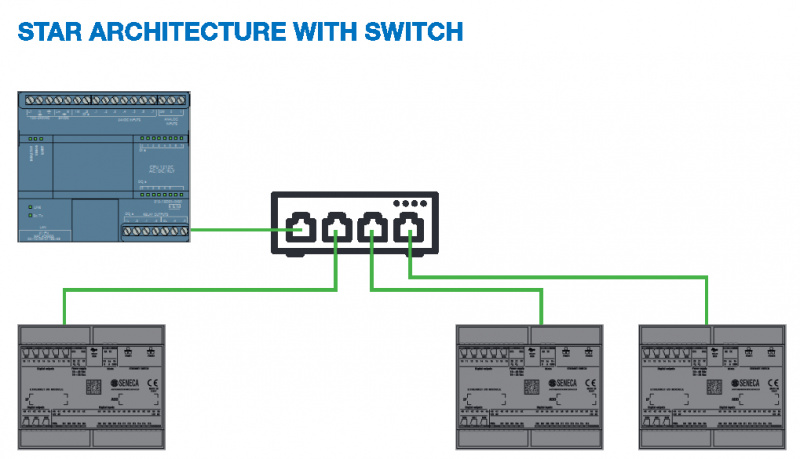

R-series available with Modbus TCP / IP and Profinet communication protocols. This gives you a wide range of integration options. R-32DIDO modules have two ethernet ports, which allows you to conveniently add an additional IO modules

With the new R-32DIDO input / output system you get:

  • 32 freely configurable channels as inputs/outputs.
  • Modbus TCP / IP or Profinet communication supported modules.

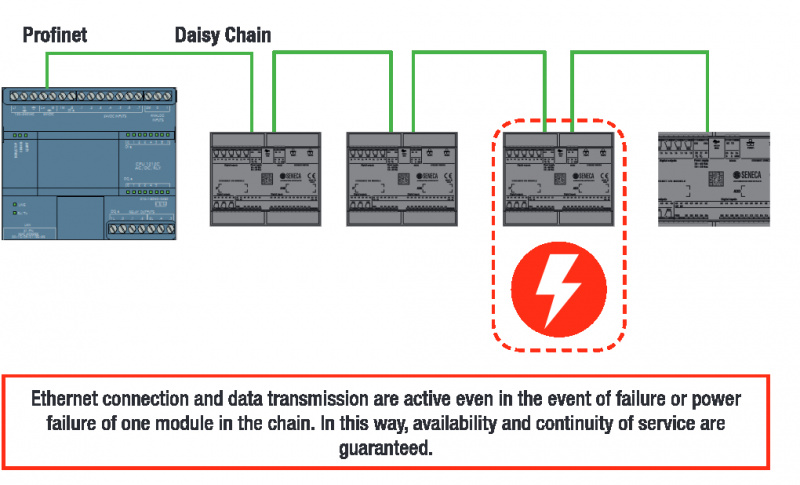

  • Convenient connection of additional modules thanks to 2x Ethernet ports.
  • GSDML file for TIA.
  • Modbus TCP / IP configuration via Codesys or USB.
  • Flexible IO system.



If you need a SENECA R-Series configurable I/O modules, contact ZTF Lāsma specialists who will help you find the most suitable and cost-effective solution. We are here to support!



Products
R32DIDO
Code: R32DIDO
In stock: 0 (on request)
320.00 EUR (w/o VAT)
R32DIDOP
Code: R32DIDOP
In stock: 0 (on request)
320.00 EUR (w/o VAT)
