INVERTEK OPTIDRIVE frequency converter now with Ethernet Modbus TCP / IP

May 15, 2020
Products Images Contacts
INVERTEK OPTIDRIVE frequency converter now with Ethernet Modbus TCP / IP-0

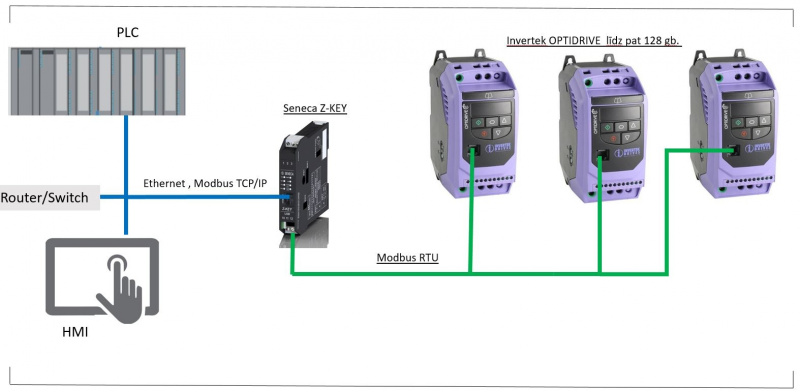

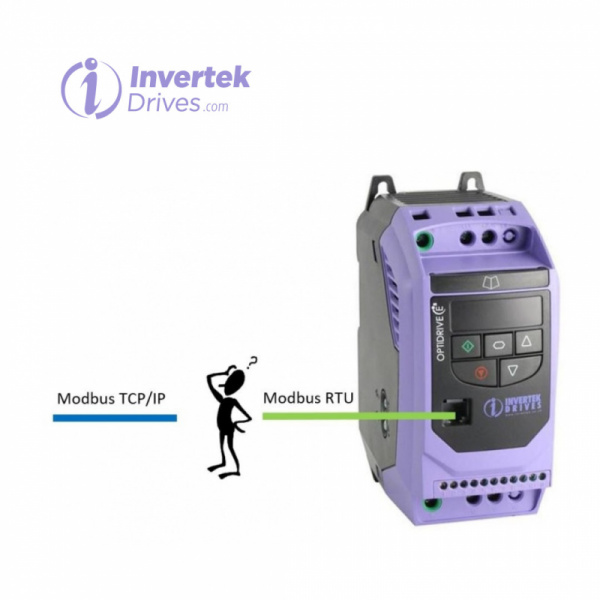

We have a solution for controlling INVERTEK frequency converters via Modbus TCP / IP, thanks to INVERTEK Modbus RTU communication.

What you should have?

  • Invertek Optidrive drive/drives (it is possible to connect up to 128 pcs)
  • Seneca Z-key Modbus TCP/IP /Modbus RTU gateway
  • your device with Modbus TCP/IP

 What you get?

  • Already known Excelent price/performance ratio Invertek drives in Ethernet
  •  Just one additional componenet-comunication module
  • Simple and intuitive setting up process

Little tip:

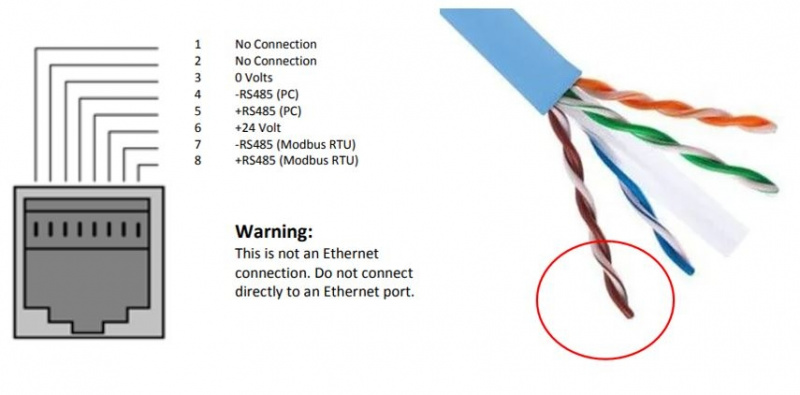

Invertek Modbus RTU via RJ45 uses Brown+white wire couple



Products
ZKEY0
Code: ZKEY0
In stock: 5+ pcs
185.00 EUR (w/o VAT)
OPTJ45SPIN
Code: OPTJ45SPIN
In stock: 2 pcs
14.62 EUR (w/o VAT)
