SICK LFP Cubic level sensor for liquids

May 20, 2020
Products Images Contacts
SICK LFP Cubic level sensor for liquids-0

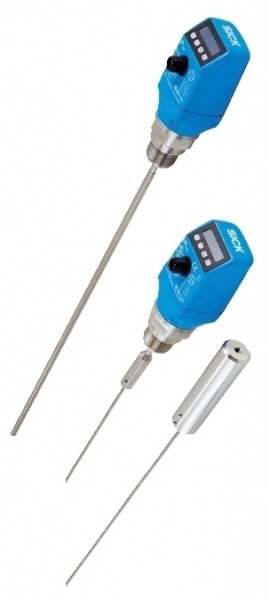

The LFP Cubic level sensor, combining time of flight and microwave technology, provides excellent level detection in almost all types of liquids. Sensor versions with a bar or cable probes up to 4000 mm are available, which can be freely cut to the required length on site.

Technical specification:

  • Sensor for measuring the continuous level and set level limits;
  • Output signal: 2 or 4 x PNP / NPN + 1 x 4 ... 20 mA / 0 ... 10 V;

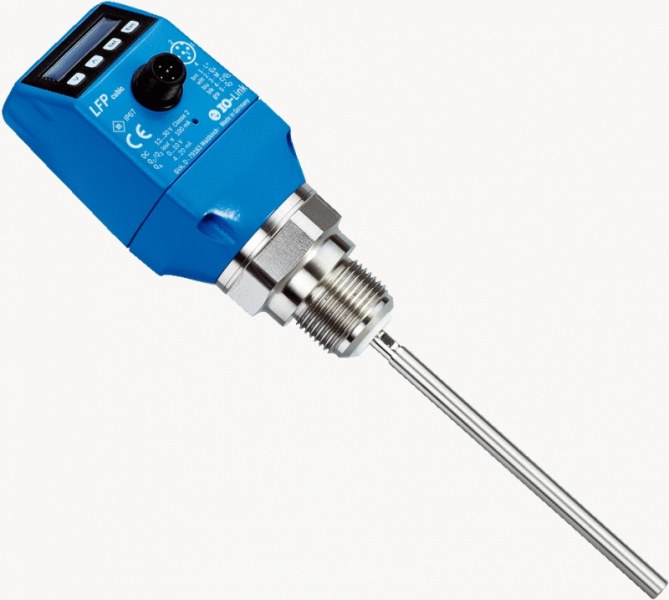

  • Rod probe length: from 200 mm to 2000 mm;

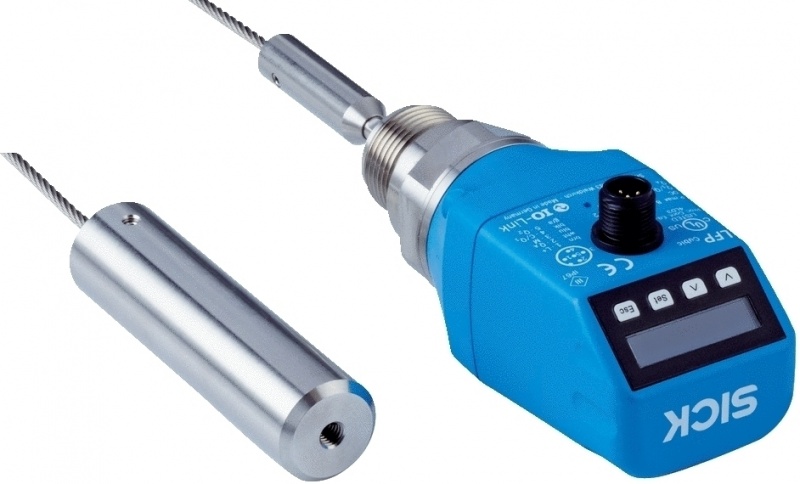

  • Cable probe length: up to 4000 mm;
  • Process temperature: -20 ° C ... + 100 ° C;
  • Process pressure: -1 bar ..10 bar;
  • Process connection: G 3/4; 3/4 NPT

Technical advantages:

  • Can be used to liquids of different viscosities, the operation of the sensor is not affected by the possible formation of deposits on the probe or foaming liquids;

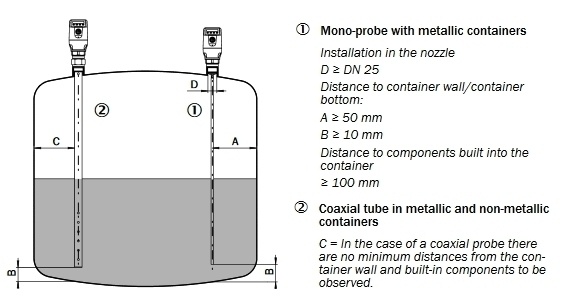

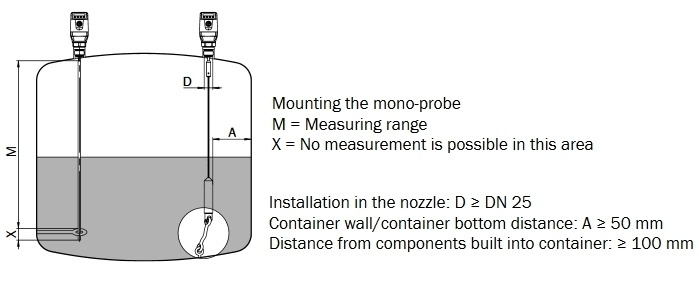

  • Measurement in metal tanks without additional accessories or in plastic tanks using an additional coaxial reference tube

Fields of applications:

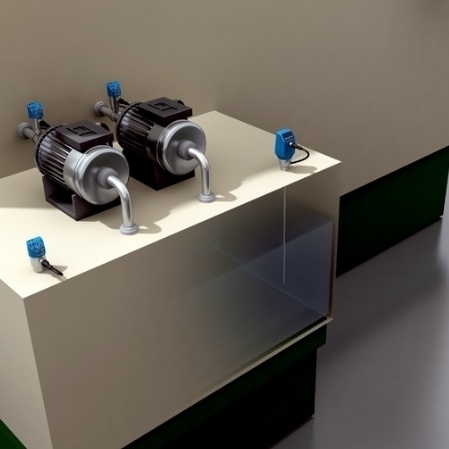

  • Level measurement in various industries;
  • Monitoring and controlling the level of coolants and lubricants;
  • Cleaning and detergent level control in food industry CIA cleaning systems;
  • Oil level monitoring in hydraulic systems.
