Our cooperation partner SIKO GmbH is one of the market leaders in the field of position indicators and actuators. Thanks to the wide range and individual development of SIKO it will be possible to create an individual or system solution of any complexity for positioning your machines and line shafts and axles.
Depending on the type of monitoring and regulation you want and the frequency of adjustments you need, SIKO offers a number of solutions to achieve the most effective result. From full manual adjustment to fully automated solutions. Even the indicators and actuators have a wide range of communication interfaces that allow remote monitoring or control of process positioning.

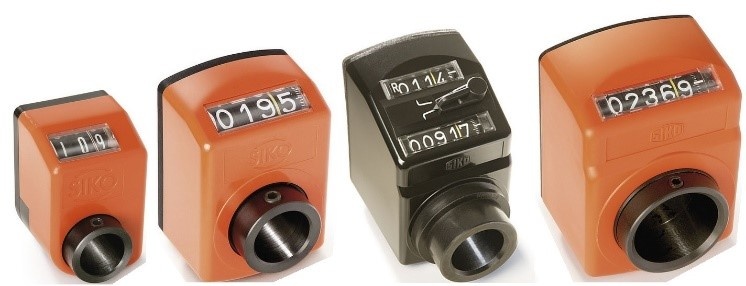

Fully manual adjustment (Mechanical indicators)
Advantages:
Cheap and reliable adjustment and positioning solution
Easy to mount directly on the shaft, ordered with a reducing bush
The meter display adjusts to the desired position and is easy to read
Each indicator can be ordered with an individually selected technical specification
Specification:
Meter display width 3-5 characters
Dob shaft diameter 10,14,25,30 mm
Speed / min 150..500..1500 max
Dust and water resistant seal

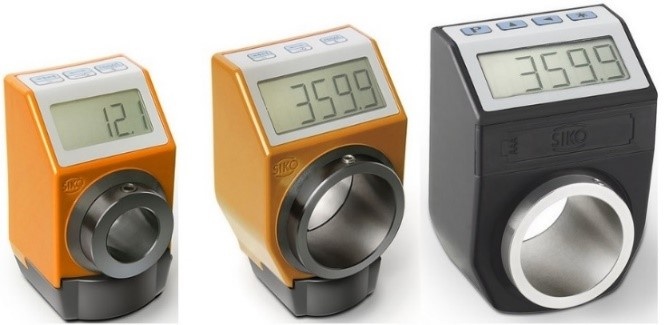

2. Fully manual adjustment (Digital indicators)
Advantages:
Suitable solutions for changing the reading parameters frequently
Easy to mount directly on the shaft, ordered with a reducing bush
Possibility to use for angular determination and adjustment (angle mode)
If necessary, easy to reprogram the indicator settings
Programming using the indicator keys or connecting to SIKO ProTool
Digital display up to 6 charactersSpecification:
Dob shaft diameter 14,16,20,30 mm
Speed / min up to 600
Battery life is 2-8 years

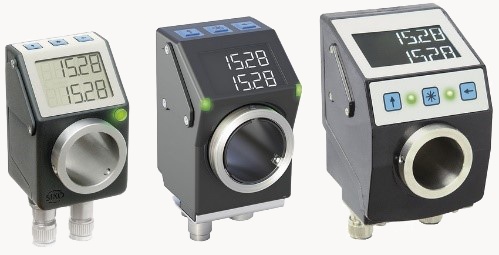

Combined adjustment (Manual adjustment + Bus communication)
Advantages:
Suitable solutions where frequent switching of equipment is required
A wide range of communication interfaces for remote process monitoring and control
Possibility to set and save desired position values both manually and remotely
Two display rows for easy comparison of the set values with the actual value.
LED indication indicating that the actual position is in line with the installed one
If necessary, easy to reprogram the indicator settings
Digital display up to 6 digits
Specification:
Dob shaft diameter 14, 20, 25mm
Speed / min up to 500
Communication - RS485, CAN bus

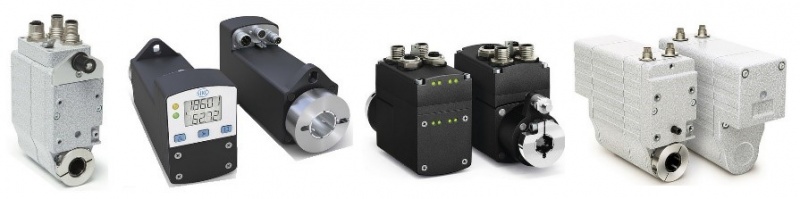

Fully automated adjustment (Actuators - Servo drive)
Advantages:
Suitable for solutions with frequent regulations and high precision requirements
Possibility to remotely control and control the positioning and adjustment processes
Extensive choice of communication interfaces via interface / signal converters
Available models with actual display for comparison and manual control
Creation of a multiple actuator system using a unified communication interface
Models with analog or pulse signal control, individual positioning solution
Specification:
Dob shaft diameter 14.20 mm
Torque 3.2.5,9,13,14 Nm
RPM / min 30, 75, 80, 150, 200, 500 rpm
Control: Bus communication - absolute values, analogue signal, pulse signal
Communication: RS485, CAN bus, Profinet, Ethernet-IP, Powerlink, Ethercat
Application:
Wide range of applications in the woodworking, metalworking, food and logistics industries
SIKO Specialized Partner in Latvia - SIA ZTF Lāsma
If you have any questions about choosing an appropriate indicator or solution, please contact us. We will be glad to help you!
