Tekon Electronics compact temperature transmitter with 0-10V output

April 12, 2022
Products Images Contacts
Tekon Electronics compact temperature transmitter with 0-10V output-0

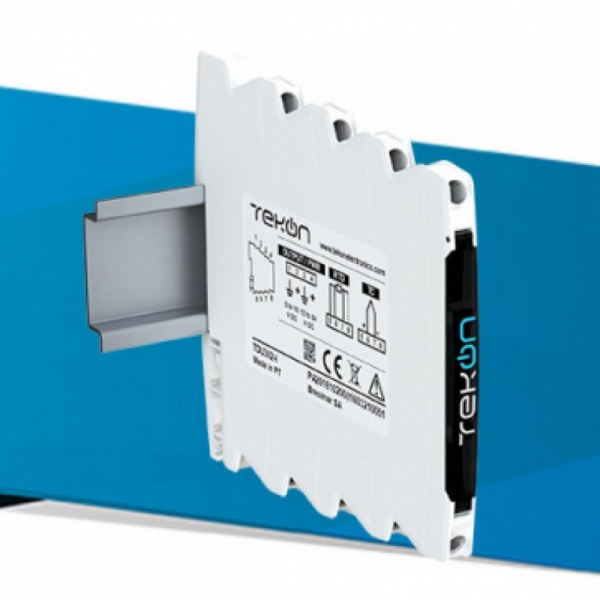

New solution for temperature measurement DIN rail transmitter with voltage output! Tekon Electronics launch of the new TDU302-I Voltage Output Isolated Din Rail Temperature Transmitter! Now it is possible to optimize temperature measurement in industrial plants with a space-saving transmitter suitable for control cabinets.

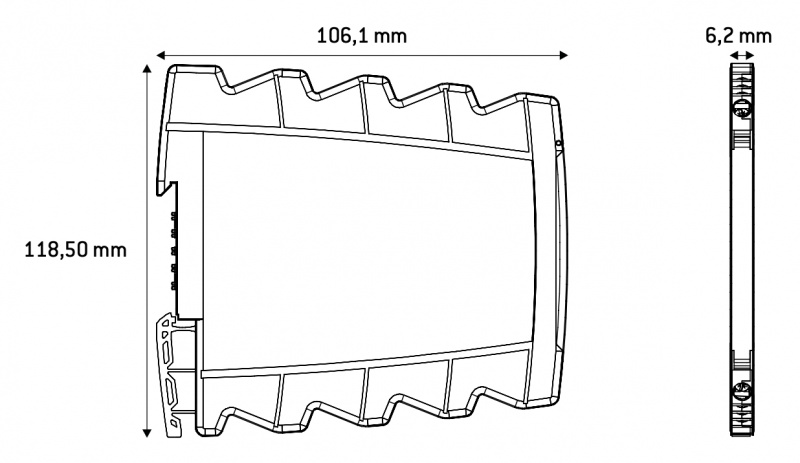

TDU302-I is a 6,2mm din rail transmitter with universal input for temperature sensors that provides a wide range of measuring possibilities. The transmitter converts low level input signals from field sensors (RTD or Thermocouples) to a proportional 0 - 10 V voltage signal that is ideal for driving panel meters, recorders, controllers, computers and other instrumentation.

This new monitoring solution offers a greater range of temperature sensor inputs to ensure their integration in a greater number of temperature monitoring scenarios.

Key Features:

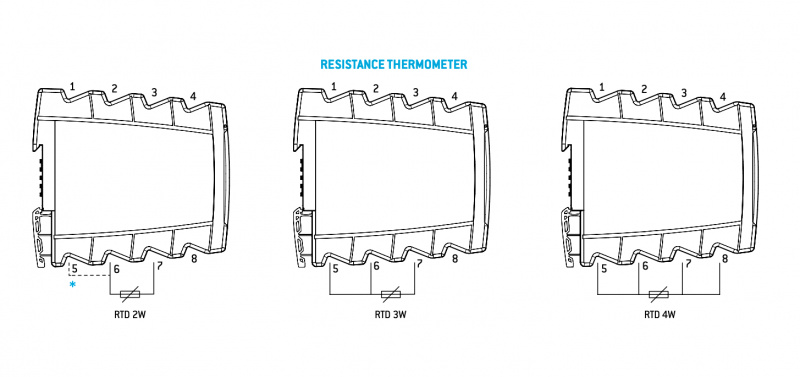

  • RTD input: PT100, PT500 and PT1000
  • Thermocouple input: J, K, N, R and T
  • 1,5 kV AC galvanic isolation
  • 0 to 10 V analog output

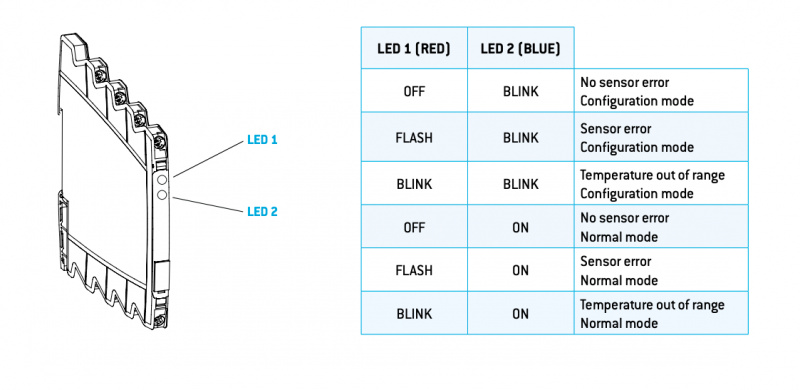

  • 2 status LED



If you need a TDU302-I, contact ZTF Lāsma specialists who will help you find the most suitable and cost-effective solution. We are here to support!
