Ethernet module 16 digital inputs / 8 digital relay outputs

2019-09-20 08:50:53

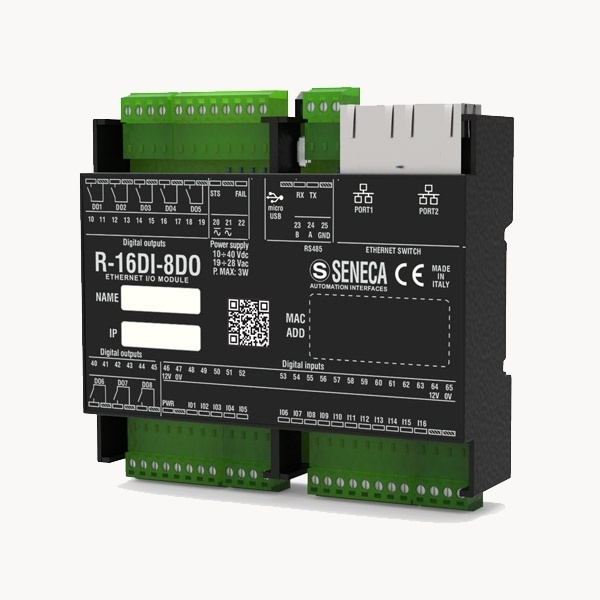

R-16DI-8DO is a digital mixed module with dual 10/100 Mbps Ethernet port and front Micro USB programming port.

The tool is designed for flexible cabling needs, small installation spaces, high density I/O applications with embedded Ethernet networking.

The R-16DI-8DO has 16 PNP/NPN digital inputs that can also be configured as @32 bit totalizers and 8 digital relay outputs with a maximum range of 30 V / 1 A.

All totalizers are stored in non-volatile memory (FeRAM).

The module is equipped with isolation between inputs, outputs and other low voltage circuits equal to 1,5 kVac.

The configuration can be done through dedicated software and web server with HTML5 support. IP address, MAC address, and firmware version associated with the single module can be identified or configured on the LAN network through the SDD (Seneca Discovery Device) tool.

R-16DI-8DO supports both ModBUS TCP-IP and RS485 serial communication with ModBUS RTU protocol.

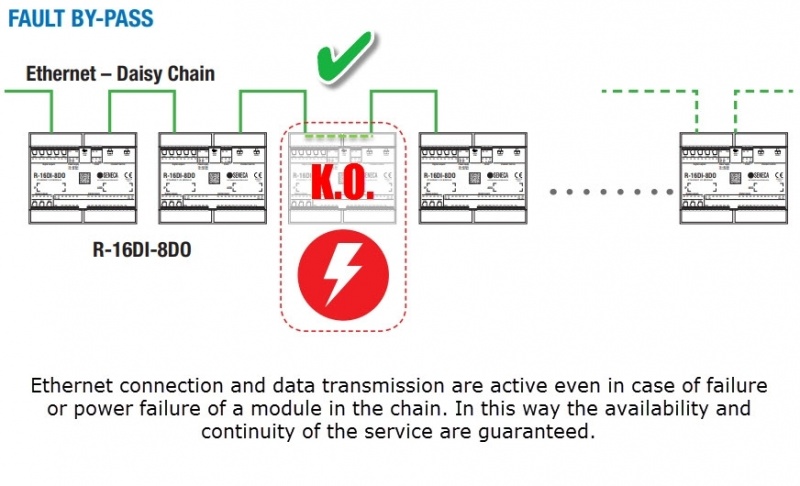

The R-16DI-8DO can be connected in Ethernet daisy chain mode with fault-bypass to ensure an Ethernet connection even if a module in the chain fails.

Digital signals can be duplicated on one or more modules in Peer to Peer mode (I/O mirror functionality).

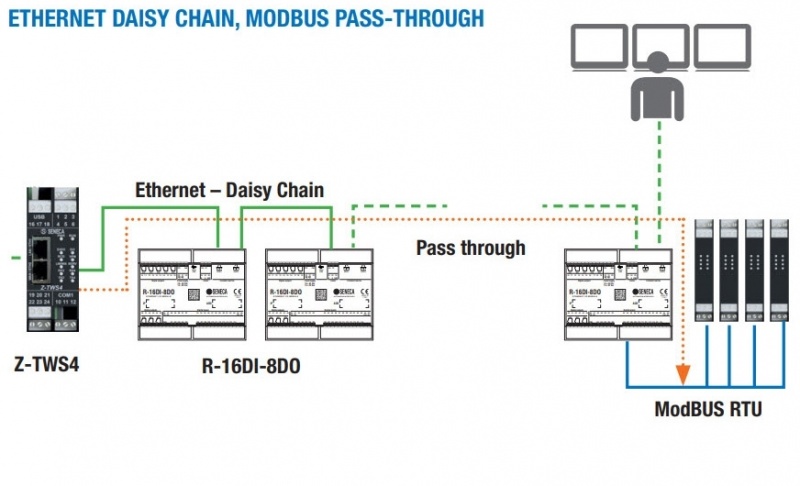

Another advanced function is the "ModBUS Passthrough" function, thanks to which the module can divert to RS485 the requests coming from Modbus TCP-IP acting, in fact, as a gateway.



GENERAL DATA:

Power supply 10..40 Vdc; 19..28 Vac

Auxiliary voltage output 12 Vdc / 40 mA

Max power consumption 3 W

Max isolation 1,5 kVac

LED status indicators Power supply Inputs / Outputs status STS (IP address / DHCP) RX / TX (Data receiving / transmission on RS485) Ethernet TRF / LNK (Data packet transit / Ethernet connection)

Protection degree IP20

Operating temperature -20..+65°C

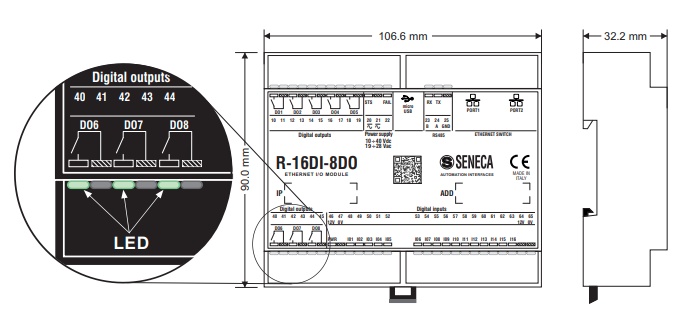

Dimension (wxhxd) 106 x 90 x 32 mm

Weight 170 g

Case Materiale PC / ABS autoestinguente UL94-V0, colore nero

Connection Terminal blocks 3,5 mm pitch, Micro USB connector, RJ45 dual connector

Installation On DIN EN 60715 rail, wall / panel mounting

Settings SENECA Studio configurator Built-in Web Server

Special functions Ethernet Daisy Chain dual connection LAN fault bypass (active connection between 2 Ethernet ports in case power failure)

Max 32 Peer to Peer Rules (I/O Mirror) without Master unit

Counters with frequency, TON, TOFF, period measurement Modbus Passthrough (TCP-IP to RS485) IP, MAC, firmware identification and setting by SDD tool Data memory FeRAM backup memory for counters
