SICK LBR / LFR SicWave 80 GHz radar level sensors for liquids and bulk materials

August 4, 2021
Products Images Contacts

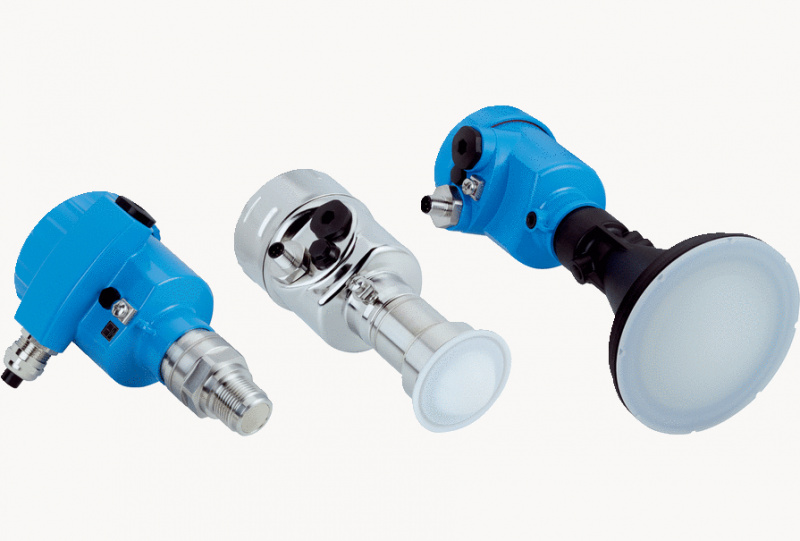

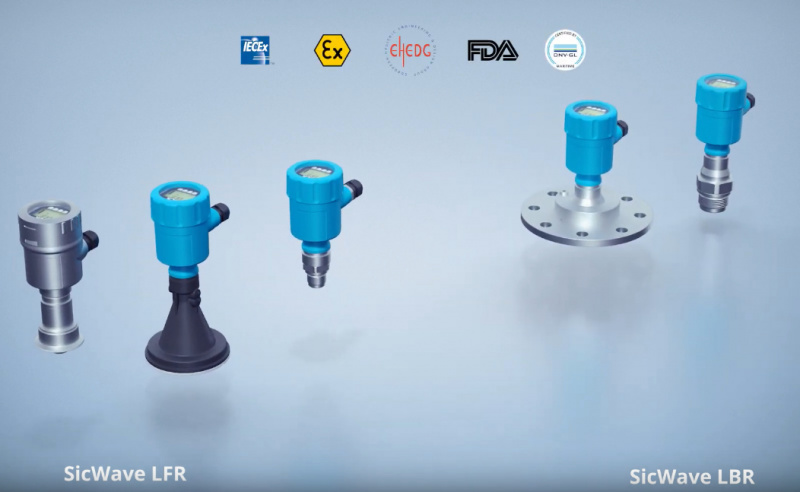

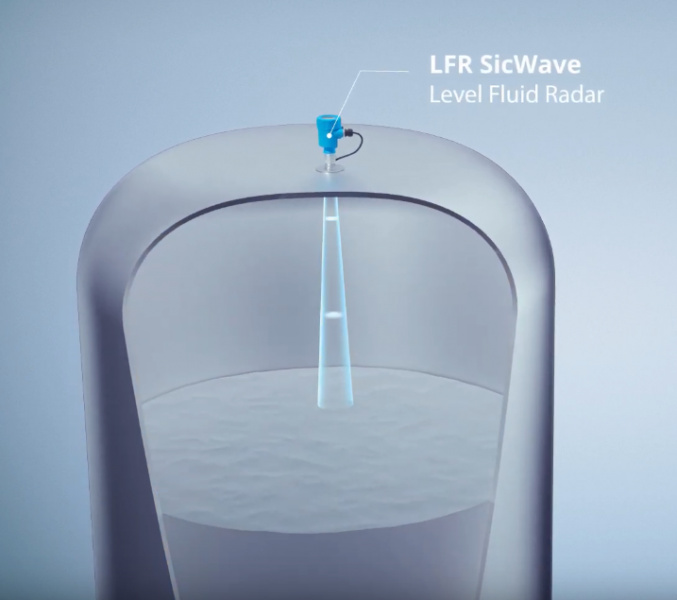

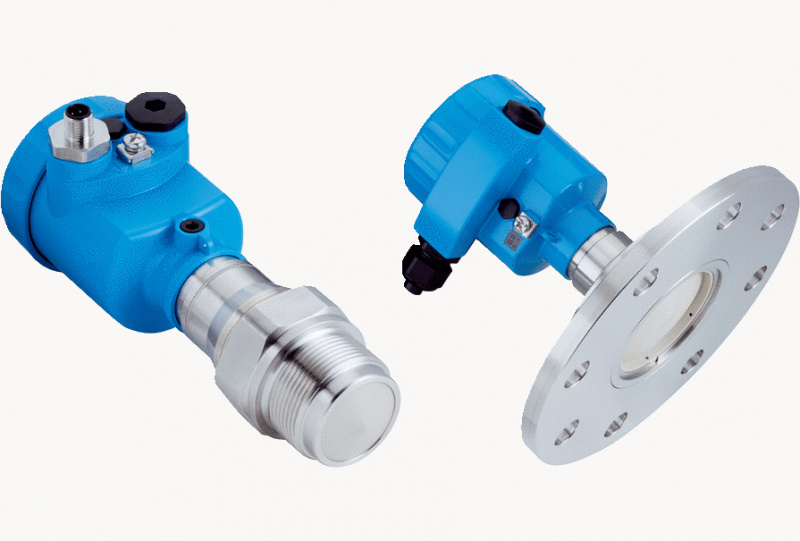

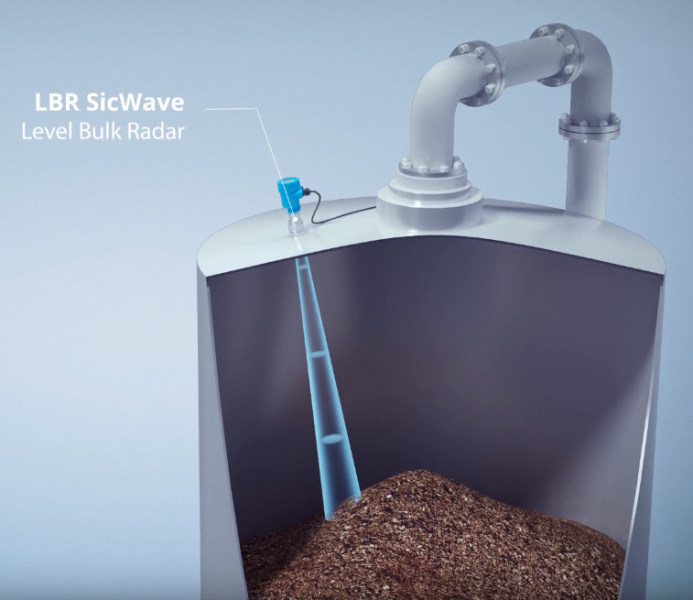

The LBR SicWave and LFR SicWave are free-space radar sensors for continuous level measurements. LFR SicWave works with all liquids and it is highly resistant to external interference, foam or deposits. LBR SicWave works with all solids and it is highly resistant to external interference, dust or deposits. Thanks to sensor`s non-contact 80 GHz radar technology, the LFR / LBR SicWave can be put into operation easily and is maintenance-free. A wide range of options for antenna design, process connections, and housing ensure an ideal connection to any application. HART communication and WPAN connection simplify service and diagnostics on the device.

LFR/LBR Specification:

  • 80 GHz free-space radar with various antennas;
  • Measuring range:  LBR  solids  up to 120 m  / LFR liquids up to 30 m;
  • Process temperature: −40 °C ... +200 °C;
  • Process pressure: −1 bar ... 20 bar;
  • Process connection: thread, flange, special brackets;
  • Housing: plastic (IP66 / IP67) or aluminum (IP66 / IP68)  or stainless steel (IP69);
  • With or without display and HART communication, WPAN connection;
  • Certificates: Ex d, Ex ia, Ex ta; WHG, shipbuilding.

Your Benefits:

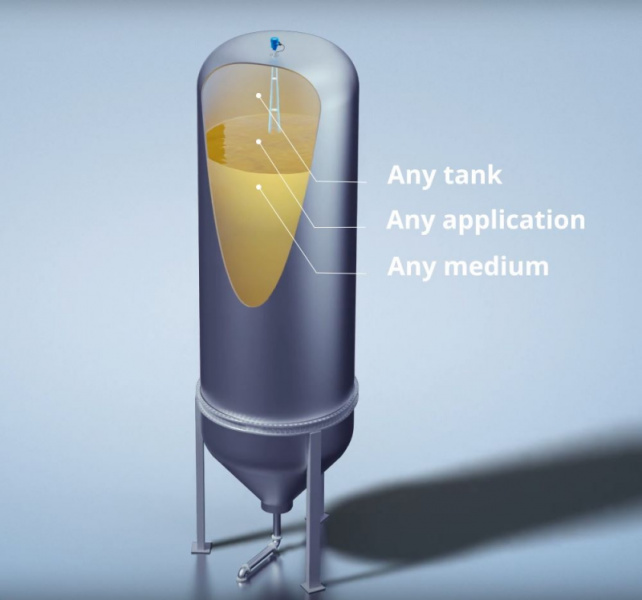

  • Excellent level measurement regardless of the substance to be measured or the shape and size of the tank;
  • Quick to commission, saving time and costs;
  • Low costs and time expenditure as it is maintenance-free;
  • Simplified service and diagnostic via HART or WPAN;
  • Insensitive to foam, deposits, and dust, preventing unexpected plant downtime;
  • Simplifies spare part logistics one device for all continuous level measurements in solids or in liquids;
  • Ex-certificates available.
Products
6072202
Code: 6072202
In stock: 0 (on request)
3991.90 EUR (w/o VAT)
6072185
Code: 6072185
In stock: 0 (on request)
4151.40 EUR (w/o VAT)
Author
Juris Vuškāns
Juris Vuškāns
Industrial Sensor Specialist
+371 2411 0541
juris@lasma.eu
Downloads

LFR SicWave Product information (PDF)

LBR SicWave Product information (PDF)
